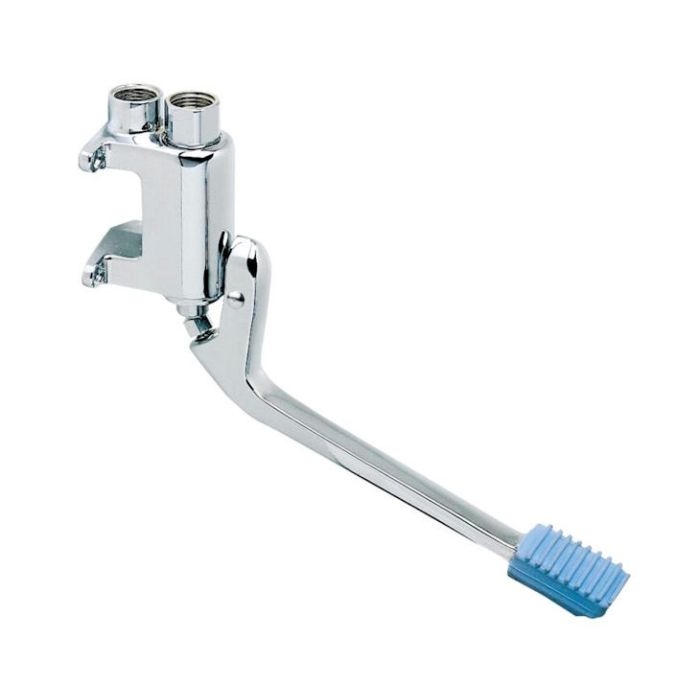

Intajet Foot Operated Wall-mounted Valve

Inta foot operated wall mounted pedal for the delivery of water in a controlled and hygienic way.

For controlling single feeds of cold or blended water supplies via a Intamix TMV.

The valves are simple to install, easy to use and vandal resistant, making them ideal for wide range of applications.

Key benefits:

• Timed flow control
• Hygienic pedal operation
• Robust construction
• Vandal resistant
• Durable
• Single inlet for cold water or blended hot water supplies
• Intended for use with the Intamix TMV
• Easy to install

Technical details:

• Min operating pressure: 0.5 bar dynamic
• Max operating pressure: 8 bar static
• Max inlet temperature: 70°C
• Inlet connection: G ½" F BSP
• Outlet connection: G ½" F BSP
• The foot pedal should be 60mm off the floor

Please note:

• If used for hot water in order to prevent scalding the hot water supply should be connected to the mixer via a thermostatic mixing valve (TMV).
• If used for cold water it is recommended that a service valve and strainer are installed in the cold water supply pipe.

Warranty:

• 1 year manufacturer warranty
