Maxxus Linear Former with Purusline Living Vinyl Plus – Stainless Steel Chess Design Grate

Maxxus Linear Shower Deck with Purus Vinyl Plus Drain and Stainless Steel Chess Grate

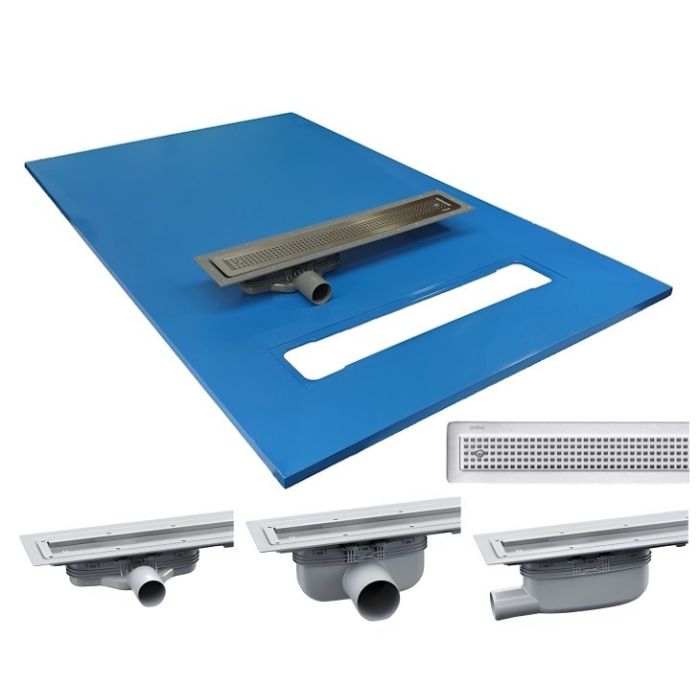

The Maxxus linear shower deck combines a level-access floor former with a Purusline Living Vinyl Plus linear drain for vinyl sheet flooring. The removable stainless steel Chess grate sits flush with the finished vinyl floor covering.

Available in a choice of former sizes, the system includes a linear drain with a low side, side or end parallel outlet. Select the outlet arrangement to suit the installation.

Key Benefits

• Designed for vinyl sheet flooring only.
• Suitable for timber and concrete floors.
• Creates a level-access shower floor without a step.
• Built-in gradients direct water towards the drain.
• Strong, vacuum-formed GRP construction.
• Former thickness of 22 or 24 mm, depending on the model. Please refer to the plan drawings.
• Made from 50% recycled materials and is 100% recyclable.
• Solid construction without pockets or hollow cavities.
• Supports loads of up to 470 kg, approximately 75 stone, over joists at 400 mm centres.
• Self-supporting over the specified joist centres, without additional underboarding.
• Can be trimmed to suit the installation, following the manufacturer's instructions.
• Flush-fitting, removable stainless steel Chess grate.
• Removable sprung Purus NOOD water trap.
• Choice of floor former size and drain outlet.

Purus NOOD Water Trap

The included Purus NOOD no-odour water trap is designed to prevent foul air from escaping through the drain, including when the gully dries out. The trap is removable for cleaning and maintenance.

Linear Drain Included

• Purusline Living Vinyl Plus linear drain with a plastic body.
• Drain length of 600 or 800 mm, depending on the selected floor former.
• Stainless steel Chess grate.
• Purus NOOD water trap.
• ABS pipe reducer from 50 to 40 mm, approximately 2 to 1½ inches.
• Choice of low side, side or end parallel outlet.

Outlet Options

• Low side outlet: 52 mm depth, with a stated flow rate of 30–36 litres per minute.
• End parallel outlet: 105 mm depth, with a stated flow rate of 60–72 litres per minute.
• Side outlet: 105 mm depth, with a stated flow rate of 60–72 litres per minute.

Please select the outlet required for your installation.

Installation

• Designed for direct installation onto joists at the specified centres, without underboarding.
• Flat underside and recessed screw holes simplify positioning and fixing.
• No release agent to inhibit bonding with vinyl flooring adhesives.
• Check the selected former's plan drawing for dimensions, thickness and drain position.
• Follow the manufacturer's instructions when trimming, fixing and fitting the vinyl flooring.
• Download the correct PDF installation instructions for the supplied linear drain length.

Guarantee

Maxxus floor formers come with a 25-year manufacturer's guarantee.

Manufacturer Product Codes

MV988, MV983, MV984, MV987, MV985, MV989, MV981, MV986 and MV982.

Former product codes: 6821988/V, 6821989/V, 6821987/V, 6821985/V and 6821986/V.
