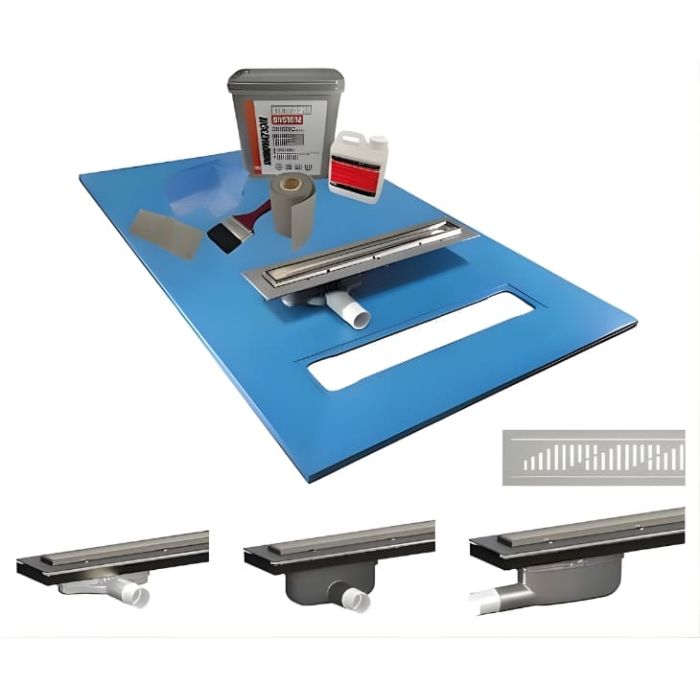

Maxxus Linear Wetroom Kit for Tiled Floors – Twist Grid, Drain & Paint on Tanking System - Multiple Sizes

Maxxus linear shower deck kit with a liquid, paint on tanking kit covering 8 to 10m² and a Purus Living linear drain, for tiled floors only.

Available in a range of sizes, the drain can also be customised with a choice of outlet type and a stainless steel removable Twist design grid.

Key benefits:

• For tiled flooring
• Suitable for timber and concrete floors
• Strong and durable base yet only 22 or 24 mm thick - refer to plan drawings for information
• Vacuum formed GRP
• Made from 50% recycled materials and is 100% recyclable
• Solid right through - no pockets or hollow cavities
• Creates a level access floor with no step
• Built in gradients for water removal to the waste
• Accepts 470kg (75 stone) loading over 400 mm joist centres
• Self-supporting - no requirement for additional support underneath
• May be trimmed down to any size
• Removable sprung NOOD water trap
• The NOOD no-odour water trap which will not allow any foul air to escape even if the gully dries out
• Stainless steel - removable Twist design grid
• Suitable for underfloor heating
• Choice of size

Installation:

• Fast former installation - laid straight on joists no under boarding needed
• Totally flat underside and recessed screw holes allow for easy fixing
• Easy to use paint on system
• Ready to use, no mixing required
• Dries into a flexible sheet membrane

Kit contents:

• 1x Purus Living Linear drain with a choice of outlets (see below)
• 1x Linear drain gasket
• 1x 9kg paint on tanking system, covers 8 to 10m² in two coats
• 1x 1 litre primer for porous surfaces
• 1x 10m tape for wall/floor joints and other gaps
• 2x Internal corners
• 2x Pipe collars
• 1x 75mm brush

Includes Purus Living linear drain, choice of 3x outlets types each with a Purus NOOD trap:

• 600 mm or 800 mm lengths depending on the floor former size
• Stainless steel - removable Twist design grid
• Plastic-bodied unit
• Choice of three gully outlets each with a ABS pipe reducer 2” to 1½” (50 mm to 40 mm):
• - Low Side Outlet with 32 ltr/min flow rate - depth (mm): 52
• - End Parallel Outlet with 72 ltr/min flow rate - depth (mm): 105
• - Side Outlet with 72 ltr/min flow rate - depth (mm): 105
• Select as required
• Note: Download the correct PDF installation instructions, based on the linear drain length

Warranty:

• Maxxus floor formers come with a 25 year manufacturer guarantee

Manufacturer product codes:

• Twist Grid: 6821983/TSS, 6821988/TSS, 6821984/TSS, 6821987/TSS, 6821985/TSS, 6821989/TSS, 6821981/TSS, 6821986/TSS, 6821982/TSS
