Maxxus Wetroom Kit – Floor Former, Hydromat EasyLap Tanking & Purus Minimax Waste

The Maxxus Wetroom Kit combines a high-performance floor former, Hydromat EasyLap tanking system and Purus Minimax waste to create a complete, reliable solution for level access wetroom installations.

The Maxxus floor former is a robust 22 mm thick tray suitable for both timber and concrete floors, designed to create a seamless, step-free shower area. With a flat underside and integrated falls towards the drain, installation is straightforward while ensuring efficient water removal.

This complete kit includes the Purus Minimax 2-part waste and Hydromat EasyLap self-adhesive tanking system, allowing for fast installation with no curing time. A choice of stainless steel or tile insert grates, including premium coloured finishes, enables you to match both performance and design requirements.

Key benefits:

• Complete wetroom kit: floor former, tanking system and waste
• Suitable for tiled flooring
• 22 mm thick GRP floor former for strength and durability
• Suitable for timber and concrete floors
• Creates a level access, step-free shower area
• Integrated falls for efficient drainage
• Hydromat EasyLap self-adhesive membrane – no curing time
• 50 mm EasyLap system with 70 mm overlaps onto joint tape
• Fleece-backed membrane provides strong key for tile adhesive
• Maxxus deck supports up to 470 kg (75 stone) over 400 mm joist centres
• Self-supporting – no additional support required
• Can be trimmed to size on site
• Purus Minimax 2-part waste with 47 litres/min flow rate
• Low-profile waste projects only 80 mm below the deck
• NOOD water trap prevents odours even if dry
• Suitable for underfloor heating systems
• Choice of sizes and grate designs

Floor former installation:

• Flat underside with recessed fixing points for easy installation
• Suitable for direct fixing to timber joists or solid floors
• Can be rotated to position the drain in the ideal location

Hydromat EasyLap installation guidance:

• Tanking must extend at least 1 m up walls and 1 m into the room from the wet area
• All areas exposed to regular water must be tanked
• The objective is to create one continuous waterproof layer to the drain
• Prime all surfaces before installation and allow to dry
• Install internal corners first, followed by joint tape at all wall and floor junctions
• Joint tape must overlap internal corners by 50 mm
• Apply membrane from the corner, overlapping onto joint tape by minimum 70 mm
• Use the 50 mm EasyLap strip to join successive membrane runs
• Roll all membrane, tape and corners to ensure full adhesion
• Butyl sealant remains permanently flexible and must be applied to all joints and gaps

Drain connection (critical step):

• Purus Minimax uses a clamping ring system
• Mark the centre of the drain and cut a 107 mm hole in the membrane
• Press the membrane into the drain body and secure using the clamping ring
• This creates a secure, watertight connection at the most critical point

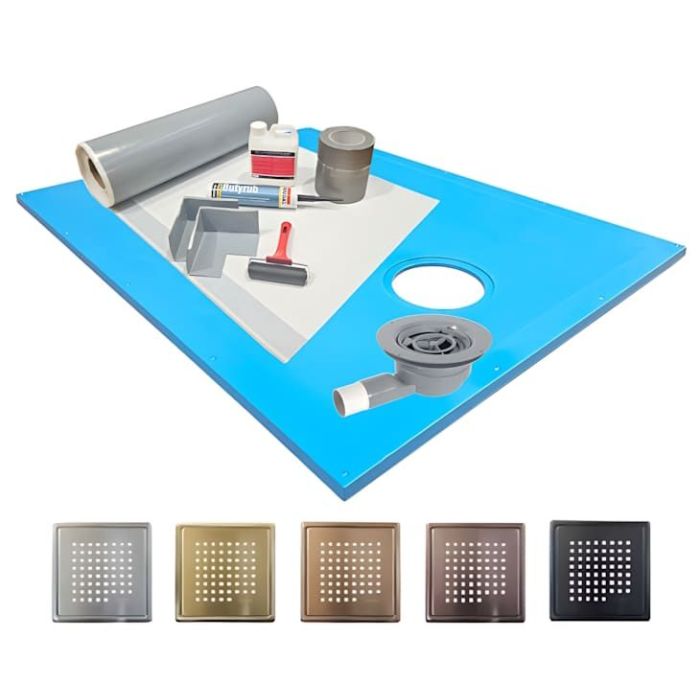

Kit contents:

• 1 x Maxxus wetroom floor former
• 1 x Purus Minimax 2-part waste (Product Code: 52719)
• 1 x Grate (select design)
• Hydromat EasyLap membrane (7.5 m² – 15 m x 550 mm)
• Self-adhesive joint tape
• Self-adhesive internal corners
• 1 litre primer
• Butyl sealant
• Application roller

Grid options:

• Purus Chess design grid – stainless steel
• Purus tile insert grate – for seamless tiled finish

Upgrade: Metal coated grid colour options:

• Brushed Brass
• Copper
• Bronze
• Black

Warranty:

• Maxxus floor former: 25-year manufacturer guarantee
• Hydromat system: life-of-tiling guarantee when installed correctly and maintained

FAQs:

• What is included in this wetroom kit? A complete system including floor former, waste, tanking membrane and installation components.
• Can it be used on timber floors? Yes, it is suitable for both timber and concrete floors.
• Do I need additional tanking? No, the Hydromat EasyLap system provides full waterproofing.
• Can tiles be installed immediately? Yes, once the membrane is applied, tiling can begin straight away.
• Is it suitable for accessible wetrooms? Yes, it is ideal for level access and wheelchair-friendly installations.
