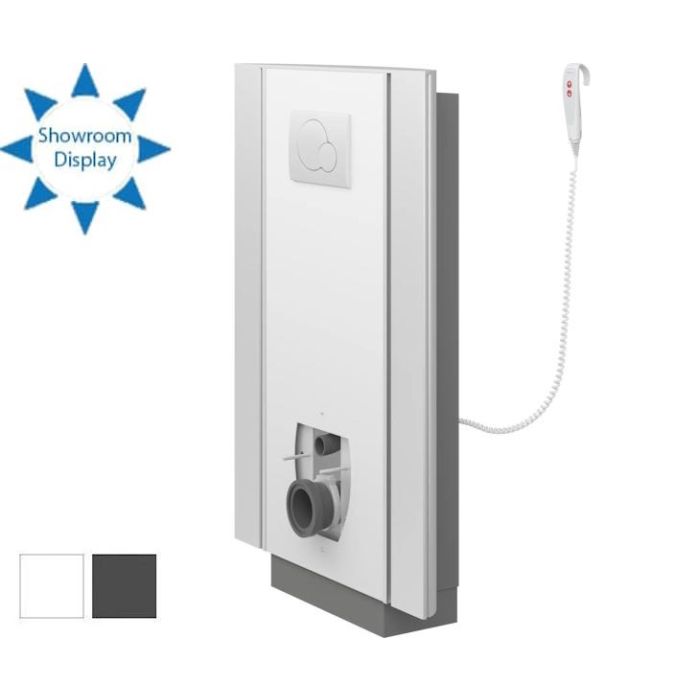

Pressalit SELECT TL2 Toilet Lifter, ELECT ADJ, Wired Hand Control, Side Profiles, Floor Outlet - Choice of Colour

The Pressalit SELECT TL2 is an electrically height adjustable toilet lifter designed to provide flexible toilet positioning for different users and transfer techniques. Using the supplied wired hand control, the WC can be raised or lowered through 400 mm, including while the user is seated.

Integral vertical side profiles allow compatible Pressalit PLUS support arms to be added on either side of the toilet lifter. Available separately in 700 and 850 mm lengths, the support arms can be selected to suit standard or projected wall-hung WC pans and are available in a range of colours.

The powered height adjustment allows the toilet seat height to be positioned between 425 and 825 mm, making the SELECT TL2 particularly suitable where frequent adjustment is required. The system can be further configured with optional fixed or removable Pressalit backrests, support arms and a compatible shower toilet to create a solution tailored to the user's requirements.

A Geberit concealed cistern with dual flushing is included and is pre-set at 3/6 litres. Optional flush buttons can also be fitted beneath compatible Pressalit PLUS support arms to operate the Geberit cistern. This version is designed for installations with a floor waste outlet.

Key benefits:

• Pressalit SELECT TL2 electrically height adjustable toilet lifter
• Can be electrically raised or lowered while the user is seated
• 400 mm of continuous powered height adjustment
• WC height adjustable from 425 to 825 mm
• Wired hand control for straightforward height adjustment
• Allows the WC to be positioned at different heights to suit individual users and transfer techniques
• Integral vertical side profiles allow compatible Pressalit PLUS support arms to be fitted
• Compatible PLUS support arms are available separately in 700 and 850 mm lengths
• Choice of left and right hand operated PLUS support arms in a range of colours
• Optional flush buttons can be fitted beneath compatible PLUS support arms for operation of the Geberit cistern - Product code: R9342
• Compatible with optional fixed and removable Pressalit backrests
• Can be combined with a compatible shower toilet to create a more tailored solution
• Designed with a minimum of holes to help make cleaning quick and effective
• Includes Geberit concealed cistern with dual flushing, pre-set at 3/6 litres
• Choice of White or Anthracite Grey front cover
• WRAS approved

WC pan compatibility:

• WC pan fixing centres (mm): 180
• Compatible with Pressalit wall-hung WC pans with a 540 mm or 700 mm projection
• WC pan is not included and should be ordered separately
• Toilet seat is not included and should be ordered separately

Technical details:

• Overall width (mm): 815
• Overall depth (mm): 215
• Overall height, min./max. (mm): 1230-1630
• Height adjustment (mm): 400
• WC height adjustment range (mm): 425-825
• Geberit concealed cistern with dual flushing system pre-set at 3/6 litres
• Geberit dual flush plate: Matt chrome, surface mounted
• Waste connection: Floor waste outlet
• Product weight (kg): 66
• Maximum user weight (kg): 200
• Maximum load including user and accessories (kg): 235
• Upward adjustment speed (mm/sec): 12
• Downward adjustment speed (mm/sec): 12
• Noise level (dB): 48
• WRAS approved

Electrical technical details:

• Mains connection: 230 V
• Mains cable length to transformer (mm): 3500
• Frequency: 50-60 Hz
• Electrical rating: IPX6
• Power consumption under maximum load (W): 70
• Standby power consumption (W): 2
• Actuator: Linak LA31 Careline, 4000 N, IPX6
• Control box: Linak CB9 Careline, IPX6
• Wired hand control: Linak HB3, IP66
• Wired controller cable length from control box / transformer (mm): 3500
• Please refer to the PDF installation instructions for full electrical and installation requirements
• Upon installation, the 2-pin plug must be removed and the unit hard wired to a fused spur in accordance with applicable electrical regulations

Materials:

• Toilet lifter: Primarily constructed from anodised aluminium
• Front plate and bottom plate: Polystyrene (PS)

Optional accessories:

• Pressalit PLUS left and right hand operated folding support arms - available separately in 700 and 850 mm lengths
• Support arm flush buttons for operating the Geberit cistern - Product code: R9342
• Pressalit fixed or removable backrests
• Compatible Pressalit wall-hung WC pans
• Compatible toilet seats
• Compatible shower toilet

Declaration of conformity:

• Complies with the requirements of Council Directive 93/42/EEC concerning medical devices, as amended by Council Directive 2007/47/EC
• Complies with the relevant requirements of Directive 2006/42/EC on machinery
• Complies with the relevant requirements of Directive 2011/65/EU on RoHS

Manufacturer product codes:

• R8312000
• R8312112

Warranty:

• 5-year manufacturer warranty

Returns - please note:

• Due to health, hygiene and infection control considerations, this product is non-returnable
