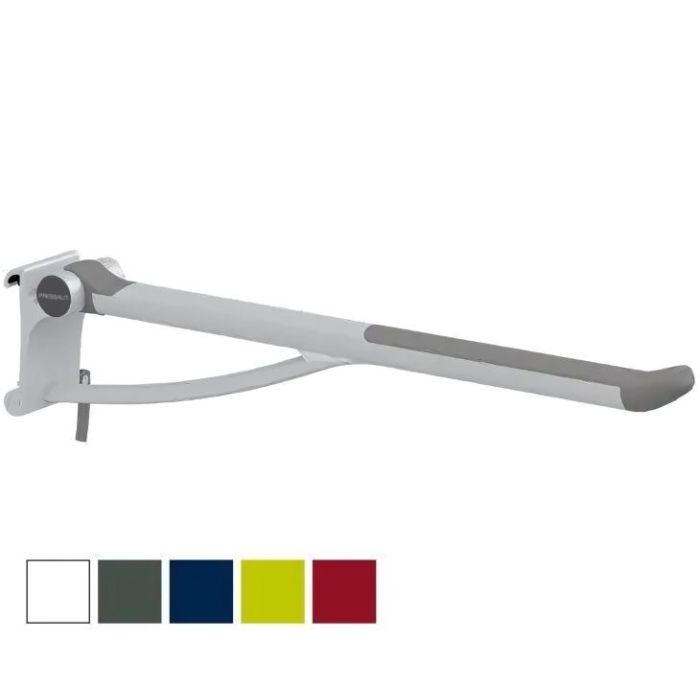

Pressalit PLUS 850mm Counterbalanced Support Arm for Horiz Track - Colour Choice

Total projection 880mm, counterbalanced folding support arm 850mm actual length. Sideways movement when mounted on the horizontal PLUS wall track (not included). Easy to slide e.g. from toilet to shower. Can be lifted on/off the horizontal track. Right hand operated. Materials: Aluminium with a non-slip gripping surface. For use with floor-standing toilets and pans projecting 700mm from the wall. Maximum load of 150kg. Choice of colours.

Counterbalanced PLUS support arm, 880mm total projection from the wall. Ergonomically shaped to provide a clear sense of where the support arm ends. Sideways adjustable. Detachable and foldable.

The support arm is used as a support for sitting down or getting up from a toilet, or for sideways transfer from a wheelchair.

The oval shape gives an easy and comfortable surface to lean and push against.

Mounts on the horizontal PLUS wall track (not included) allowing the user to slide the arm e.g. from the toilet to a shower.

Suitable for use with floor standing toilets and WC pans projecting 700mm from the wall.

Key benefits:

  • For fitting to the horizontal PLUS wall track (not included)
  • 850mm actual support arm length
  • 880mm total projection from the wall
  • Counterbalanced mechanism that prevents the support arm moving unless guided up or down
  • Manual adjustable sideways movement
  • Easy lift on/off horizontal track
  • Right-hand operated - handle is positioned to the right of the grabrail
  • Can be folded against the wall when not in use to create more room space
  • Ergonomic grip for weak hands
  • Soft and slip-resistant material that has a warm feel
  • The oval shape gives an easy and comfortable surface to lean and push against
  • The end of the support arm is enlarged so that it is easier to pull forward from a sitting position
  • Provides a clear sense of where the support arm ends
  • The underside is shaped for the mounting of various accessories
  • For indoor use in a wet environment, such as a bathroom or a washroom, in private homes, nursing homes and hospitals
  • Doc M compliant
  • Range of colours available

Counterbalanced mechanism:

  • Prevents the support arm moving unless guided up or down
  • For example, if you take it to 45° it will stay at 45° until you push it back up or pull it down further

Technical details:

  • Total projection from wall, including wall track (not included) (mm): 880
  • Support arm length (mm): 850
  • Top of rail distance from the wall when folded (mm): 53
  • Inner grab distance from the wall when folded (mm): 68
  • Total arm projection - Distance from the wall when folded (mm): 220
  • Height off the floor to the top of arm at the recommended installation height (mm): 854
  • Total height of arm when folded at the recommended installation height (mm): 1640
  • Recommended height of horizontal wall track (not included) (mm): 852
  • Right hand mounted, lever lock
  • For use with floor standing toilets and pans projecting from the wall (mm): 700
  • Max. load (kg): 150
  • Weight (kg): 3.1

Materials:

  • The arms are primarily constructed in 10-micrometre anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core
  • The hinge arm is also made of soft SEBS. Internal components and fasteners are primarily made of stainless steel

Warranty:

  • 5 year manufacturer warranty

Manufacturer product codes:

  • R381485000, R381485035, R381485108, R381485112, R381485277

Former manufacturer codes:

  • The Pressalit PLUS range has superseded several former Pressalit products
  • This item has replaced: R3518xxx, R3285, R3285000, R3285026, R3285035, R3285108, R3285112, R3285277
  • Please check for any changes to the product specification
  • Please also note that items in the PLUS range cannot be mounted onto older Pressalit wall tracks, and vice versa
Technical Information
Manufacturer Pressalit
Type Hinged Arm Support
WC Projection (mm) 700
Mounting Pressalit Horizontal Track
Arm Control Counterbalanced
Adjustable Sideways Adjustable
Length (mm) 850
Surface Finish Soft & Slip-Resistant - "Not Cool to Touch"
Material Aluminium
Fixings Concealed
Stock status Available to order
Delivery timeWhite and Anthracite = 2-3 weeks. All other colours = 3-4 weeks.
Returns Status Returnable in 14 days
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code: R381485xxx
Availability Available to order (Info)
Expected delivery White and Anthracite = 2-3 weeks. All other colours = 3-4 weeks.
VAT Exemption is available on this product - deducted at Checkout (Info)
Total projection 880mm, counterbalanced folding support arm 850mm actual length. Sideways movement when mounted on the horizontal PLUS wall track (not included). Easy to slide e.g. from toilet to shower. Can be lifted on/off the horizontal track. Right hand operated. Materials: Aluminium with a non-slip gripping surface. For use with floor-standing toilets and pans projecting 700mm from the wall. Maximum load of 150kg. Choice of colours.
In stock
As low as £561.00 £467.50
