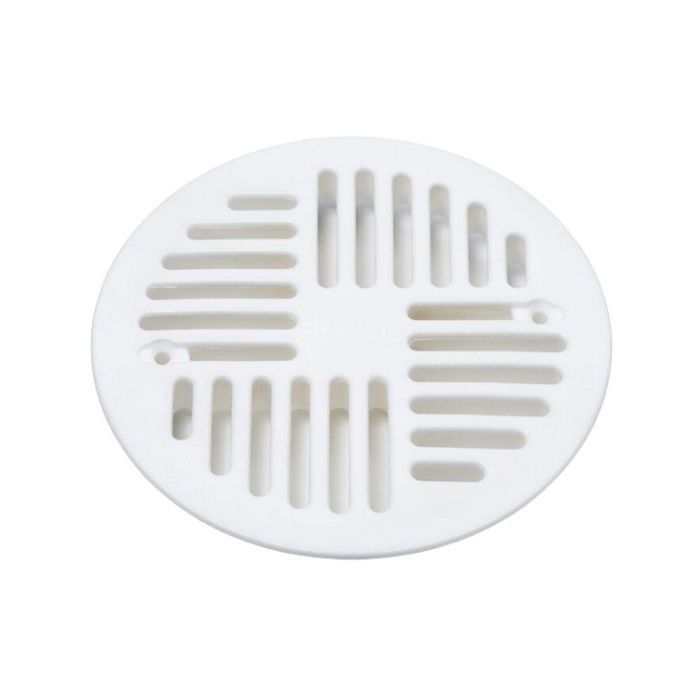

Purus 130 mm Vinyl Floor Grid – White ABS Plastic (Art Deco Design)

The Purus 130mm vinyl floor grid is designed as a direct replacement for the top cover of compatible Purus wet room floor wastes, including the popular Minimax, Brage and Oden ranges. It provides a simple and effective way to maintain performance and appearance without replacing the full drain system.

Manufactured from strong white ABS plastic, this grid is built for long-term durability across domestic bathrooms, accessible wet rooms and commercial environments. The clean Art Deco design delivers a neat, unobtrusive finish that works across a wide range of installations.

Engineered for strength, the grid supports a sustained load of up to 470kg (approximately 75 stone), making it suitable for accessible bathrooms, including wheelchair users and high-traffic areas.

The grid includes two countersunk screw fixing points, allowing it to be securely fixed in place where required. Optional security fixing screws are also available to help prevent removal in care environments, hotels and public settings.

Key Benefits:

• 130mm diameter – designed for vinyl flooring installations
• Direct replacement for Purus Minimax, Brage and Oden floor wastes
• Manufactured from strong white ABS plastic
• Clean Art Deco design for a neat, professional finish
• Supports up to 470kg (75 stone) sustained load
• K3 load class
• Designed to withstand a good flow rate
• Two countersunk fixing points for secure installation
• Optional security fixings available for added safety

Compatible Purus Shower Wastes:

• Purus Minimax 50 with Horizontal Outlet (Product Code: 7113764UK)
• Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (Product Code: 52719)
• Purus Mini Brage 110 Vertical Outlet (Product Code: 7113538UK-F)
• Purus Mini Brage 50 Vertical Outlet (Product Code: 7113539UK)
• Purus Mini Oden 50 Horizontal Outlet (Product Code: 7113535UK)

Optional Security Fixing Screws:
Product Code: 7138417 – Designed to prevent unauthorised removal of the grid where additional control is required.

A straightforward, reliable replacement that maintains both performance and finish in wet room environments.

What is a Purus 130mm vinyl grid used for?

It is used as the top cover for compatible Purus wet room floor wastes, allowing water to drain while protecting the waste below.

Is this a replacement or a full drain?

This is a replacement grid only. It fits onto existing Purus Minimax, Brage and Oden floor waste units.

What material is the grid made from?

The grid is manufactured from strong white ABS plastic for durability and long-term use.

Is it suitable for accessible bathrooms?

Yes. With a load capacity of up to 470kg, it is suitable for wheelchair users and high-use wet room environments.

Can the grid be secured in place?

Yes. It includes fixing points and can also be fitted with optional security screws to prevent removal.
