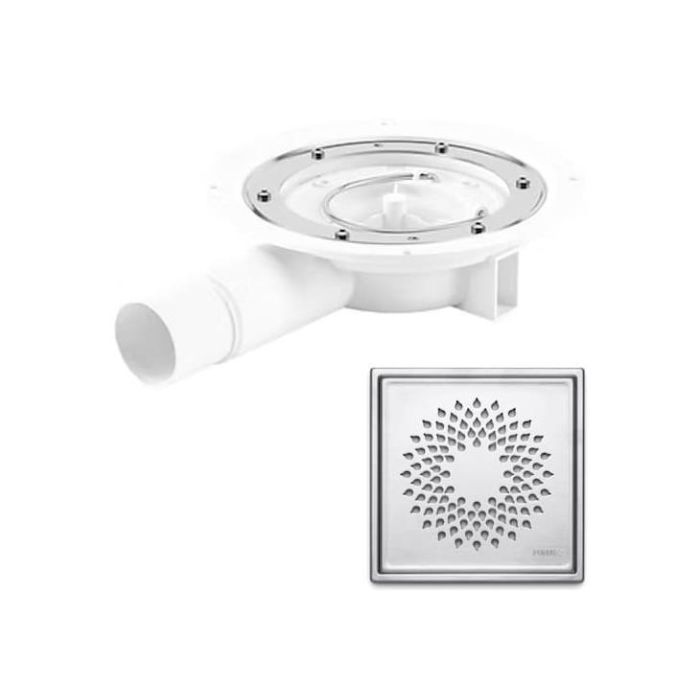

Purus 7110406T 59mm S-Series Minimax Floor Gully – Horizontal Outlet, 197mm Sq. Tile Frame, SS Drop Grate
The Purus 7110406V S-Series Minimax is a compact, low-profile wet room floor gully designed for use with tiled flooring over concrete or screed sub-floors. With an ultra-slim depth of just 59mm, it’s ideal for installations where floor build-up needs to be kept to a minimum. This one-part gully features a 40mm horizontal outlet with a 1½" UK adapter, and includes the patented NOOD odour trap, which opens with water flow and seals when dry to prevent foul air from escaping. A stainless steel clamping ring with six retaining screws ensures a secure fit for a drain gasket and tanking system, with a 197x197mm stainless steel drop grate for tiled floor finishes.
S-Series Minimax Purus 1-part gulley has an extra-low profile of 59mm, specifically designed for installation in concrete / screed floors with a tiled floor finish.
Ideal for domestic and commercial wet room floors.
Key benefits:
- Low profile waste, reduces volume of concrete / screed required for the floor
- For independent mounting
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Stainless steel clamping ring, with 6 x retaining screws
- The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system
Technical details:
- 215mm overall diameter
- Overall height of 59mm
- Horizontal 50mm outlet with 1½" / (40mm) UK adapter
- Flow rate 28.8 litres/minute (0.48 litres/second)
- The gully must be installed horizontally
- Waste material: PP gully with ABS adapter
- Purus grate: Load class K3 (300kg)
- Tiled floors - Purus Tile frame 197x197mm, 6mm high. Stainless steel drop design grate (Product Code: 7138376)
Installation Guidance:
- The minimum gradient should be 1:150 to ensure the flow of water to the floor trap and no more than 1:50 to reduce the risk of slipping
- A nominal 2% falls is usually used
- Only use a fine and hardened concrete around the gully
- The gully must be installed horizontally. It is designed only to be installed level with the surrounding floor
- Tiled flooring - The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system, see PDF installation instructions
| Manufacturer | Purus |
|---|---|
| Configuration | Gravity Waste |
| Installation | Concrete / Screed Floors |
| Application | Screed Floors |
| Waste Diameter (mm) | 197 |
| Waste Outlet / Depth (mm) | Horizontal |
| Flow Rate / l/min | 28 |
| Floor Finish | Tiled Flooring |
| Grate Material / Finish | SS / Drop |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
