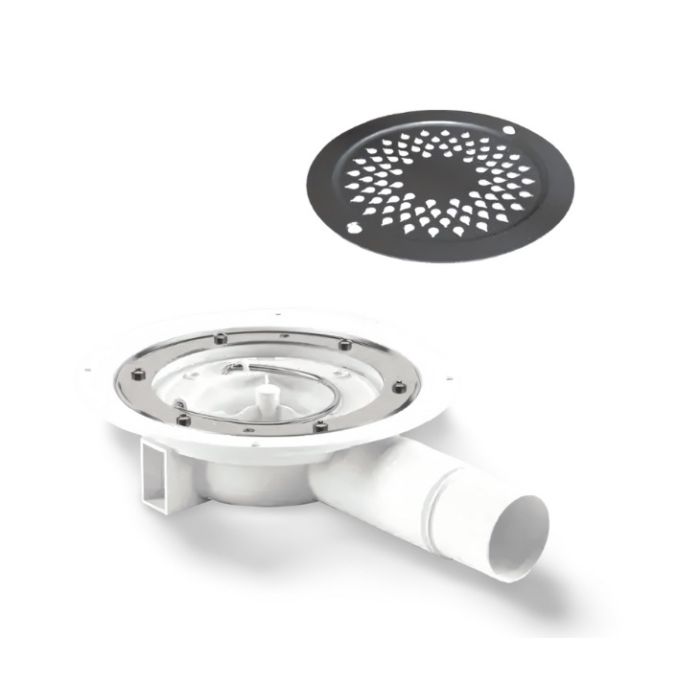

Purus 7110406V – 59mm S-Series Minimax Floor Gully, Horizontal Outlet for Screed & Vinyl Floors
The Purus 7110406V S-Series Minimax is a compact, low-profile wet room floor gully designed for use with vinyl sheet flooring over concrete or screed sub-floors. With an ultra-slim depth of just 59mm, it’s ideal for installations where floor build-up needs to be kept to a minimum. This one-part gully features a 40mm horizontal outlet with a 1½" UK adapter, and includes the patented NOOD odour trap, which opens with water flow and seals when dry to prevent foul air from escaping. A stainless steel clamping ring with six retaining screws ensures a secure fit for vinyl flooring, while the drop design grate includes security fixing screws for added safety.
S-Series Minimax Purus 1-part gulley has an extra-low profile of 59mm, specifically designed for installation in concrete / screed floors with a vinyl sheet floor finish.
Ideal for domestic and commercial wet room floors.
Key benefits:
- Low profile waste, reduces volume of concrete / screed required for the floor
- For independent mounting
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Stainless steel clamping ring, for vinyl sheet flooring with 6 x retaining screws
Technical details:
- 215mm overall diameter
- Overall height of 59mm
- Horizontal 50mm outlet with 1½" / (40mm) UK adapter
- Flow rate 28.8 litres/minute (0.48 litres/second)
- The gully must be installed horizontally
- Waste material: PP gully with ABS adapter
- Purus grate: Load class K3 (300kg)
- Circular stainless-steel grate 174mm diameter
- Drop design with 2x fixing screws (Product Code: RSK 712 95 07)
- The minimum gradient should be 1:150 to ensure the flow of water to the floor trap and no more than 1:50 to reduce the risk of slipping
- A nominal 2% falls is usually used
- Only use a fine and hardened concrete around the gully
- The gully must be installed horizontally. It is designed only to be installed level with the surrounding floor
- Only use a fine and hardened concrete around the gully
- Vinyl flooring - The clamping ring retains the vinyl flooring, see PDF installation instructions
Installation Guidance:
| Manufacturer | Purus |
|---|---|
| Configuration | Gravity Waste |
| Installation | Concrete / Screed Floors |
| Application | Screed Floors, Has Lockable Grate |
| Waste Diameter (mm) | 215 |
| Waste Outlet / Depth (mm) | Horizontal |
| Flow Rate / l/min | 28 |
| Floor Finish | Vinyl Sheet Flooring |
| Grate Material / Finish | Stainless Steel / Drop |
| Stock status | Available to order |
|---|---|
| Delivery time | Please Email for a lead time |
| Returns Status | Returnable in 14 days |
