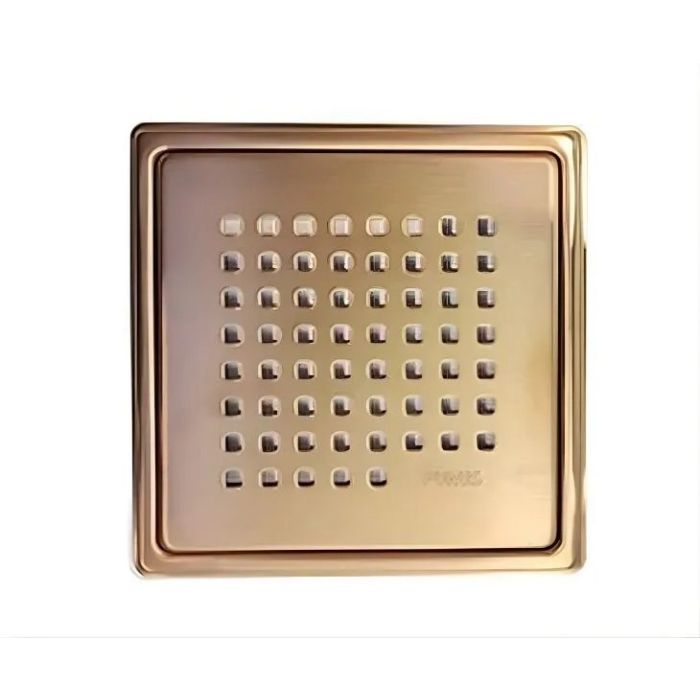

Purus / Innovations 155x155mm Chess Grid & Frame - Copper Durable Plated 304 Stainless Steel

This Purus 155x155mm chess design grid and frame provides a premium finishing detail for tiled wet room floors. Designed for use with 130mm diameter floor wastes, it delivers both durability and a refined architectural appearance.

Manufactured from luxury durable plated 304 stainless steel, the copper finish offers enhanced resistance to wear, scratching and corrosion compared to standard coatings. This ensures long-term performance in both domestic and commercial wet room environments.

The two-part design includes a removable grid, allowing easy access to the waste below for cleaning and maintenance. The frame is designed to sit centrally over the waste, ensuring full access to the trap when required.

During installation, tiling should be carried out from the frame edge outwards. Once complete, the joint between the frame and tiles should be sealed with silicone for a watertight finish.

Key Benefits:

• 155x155mm square grid and frame for tiled wet rooms
• Manufactured from plated 304 stainless steel
• Durable copper finish with enhanced wear and corrosion resistance
• Removable chess design grid for easy maintenance access
• Designed for use with 130mm diameter floor wastes
• Load Class K3 (300kg) suitable for domestic and commercial use
• Frame can be rotated to align with tile layout

Technical Details:

• Dimensions: 155 x 155mm
• Height: 6mm
• Design: Chess grid with frame
• Material: Plated 304 stainless steel
• Finish: Copper
• Load Class: K3 (300kg)

Compatible Purus Floor Wastes:

• Purus Minimax 50 with Horizontal Outlet (Product Code: 7113764UK)
• Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (Product Code: 52719)
• Purus Mini Brage 110 Vertical Outlet (Product Code: 7113538UK-F)
• Purus Mini Brage 50 Vertical Outlet (Product Code: 7113539UK)
• Purus Mini Oden 50 Horizontal Outlet (Product Code: 7113535UK)

A durable and refined grid solution designed to complete tiled wet room installations with both performance and visual quality.

What is this Purus chess grid used for?

It is a decorative and functional grid and frame designed for tiled wet room floors, fitting over compatible 130mm floor wastes.

What material is the grid made from?

The grid is manufactured from durable plated 304 stainless steel with a copper finish for improved wear and corrosion resistance.

Is the grid removable for cleaning?

Yes. The two-part design allows the grid to be removed for easy access to the waste and trap below.

Is this suitable for commercial use?

Yes. With a K3 load rating (300kg), it is suitable for both domestic and commercial wet room environments.

How is the frame installed?

The frame is positioned centrally over the waste, with tiles laid from the edge outward and sealed with silicone once complete.
