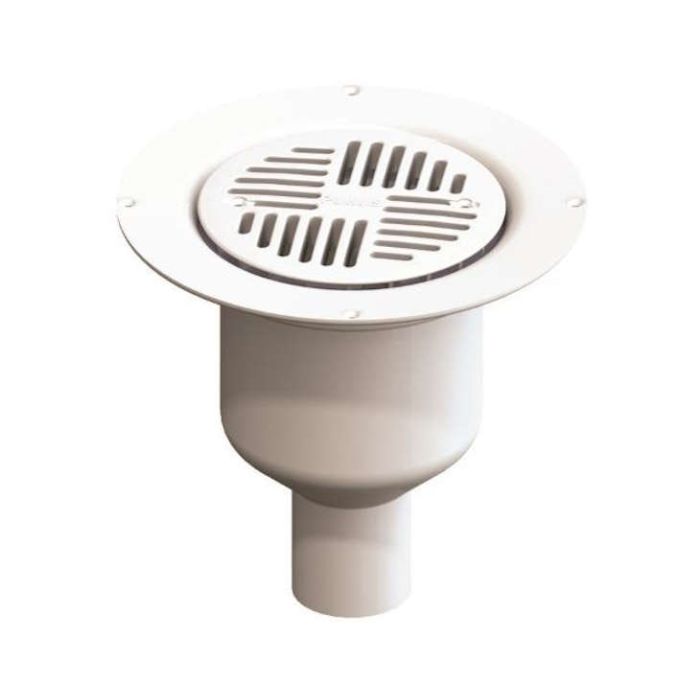

Purus Mini Brage 50 – Vertical Waste Outlet with Optional Security Fixings
The Purus Mini Brage 50 is a compact, high-performance wet room floor gulley designed for use with vinyl or tiled flooring over timber or concrete/screed sub-floors. Featuring a vertical 50mm outlet with a pre-fitted 1½" (40mm) UK adapter, it ensures efficient water drainage and easy installation. This unit includes the patented NOOD sprung water trap, which opens with water weight and prevents foul air from escaping — even when dry. The clamping ring secures vinyl flooring or a drain gasket for tiled installations, making it a versatile solution for various wet room setups. Optional security fixings are available to prevent grate removal, and the plastic grate can be upgraded to a stainless steel version for enhanced durability and aesthetics.
Purus single part trapped gravity floor gulley suitable for use with floor formers for both concrete and timber floor installations, with either tiled or vinyl floor finishes.
Key benefits:
- Strong - capable of supporting a sustained load of 470 kg (75 Stone)
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Easy to clean
- 200mm overall diameter
- 130mm visible diameter
- Supplied with a circular plastic grate as standard
- Can be used with tiled flooring when a tiling grate and drain gasket are fitted (see below for more information)
- Overall height of 189mm
- Vertical 50mm outlet with pre-fitted 1½" / (40mm) UK adapter solvent welded connector
- Flow rate 48 litres per minute
Compatibility:
- Vinyl flooring - The clamping ring retains the vinyl flooring, see PDF installation instructions
- Tiled flooring - The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system, see PDF installation instructions
Options:
- Security fixing screws to prevent the removal of the grate - select if required
- Can be upgraded to a stainless-steel grate - Purus circular grates available separately
- Suitable for tiled flooring with the addition of a Purus tile adapter or square stainless-steel grate - available separately
| Manufacturer | Purus |
|---|---|
| Configuration | Gravity Waste |
| Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8, AKW / Contour - ShowerDec, Maxxus |
| Installation | Floor Formers, Concrete / Screed Floors, Timber Floors |
| Application | Floor Former, Timber Floors w/ Purus Plate 130, Has Lockable Grate |
| Waste Diameter (mm) | 200 |
| Waste Outlet / Depth (mm) | Vertical |
| Flow Rate / l/min | 48 |
| Floor Finish | Tiled Flooring, Vinyl Sheet Flooring |
| Grate Material / Finish | Plastic / White |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
