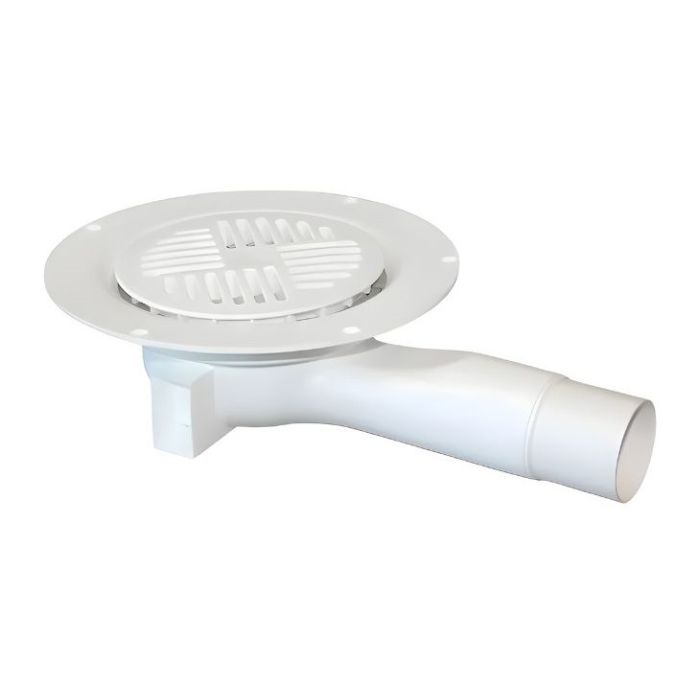

Purus Minimax 50 Horizontal Outlet – 7113764UK with Optional Security Fixings
The Purus Minimax 50 is a compact, high-performance wet room floor drain designed for use with vinyl, tiled, or resin flooring over timber or concrete/screed sub-floors an Maxxus floor formers. Featuring a horizontal 50mm outlet with a pre-fitted 1½" (40mm) UK adapter, it delivers a flow rate of up to 48 litres per minute, ensuring efficient drainage in gravity or pumped waste systems. 200mm overall diameter, Overall height of 76mm including 6mm fall and a max. load of 470kg. Made from durable polypropylene, the unit includes the patented NOOD odour-free water trap, which prevents foul air from escaping even when dry. The clamping ring secures vinyl flooring or a drain gasket for tiled installations, and the grate can be locked using optional security fixings for added safety.
Purus single part trapped floor gulley suitable for use with Maxxus floor formers in both concrete and timber floor installations, with either vinyl flooring or tiled floor finishes.
The waste can also be installed in concrete/screed floors.
Key benefits:
- Strong - capable of supporting a sustained load of 470 kg (75 Stone)
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Easy to clean
- 200mm overall diameter
- 130mm visible diameter
- Supplied with a circular plastic grate as standard
- Can be used with tiled flooring (see below for more information
- Overall height of 76mm including 6mm fall
- Horizontal 50mm outlet with pre-fitted 1½" / (40mm) UK adapter solvent welded connector
- Flow rate 48 litres per minute, according to EN 1253
Compatibility:
- Vinyl flooring - The clamping ring retains the vinyl flooring, see PDF installation instructions
- Tiled flooring - The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system, see PDF installation instructions
- Can be used with a shower waste pump that has an external flow switch, requires 15mm pipework from the waste outlet
Options:
- Security fixing screws to prevent the removal of the grate - select if required
- Can be upgraded to a stainless-steel grate - Purus circular grates available separately
- Suitable for tiled flooring with the addition of a Purus tile adapter or square stainless-steel grate - available separately
| Manufacturer | Purus |
|---|---|
| Configuration | Gravity or Pumped Waste |
| Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8, AKW / Contour - ShowerDec, Maxxus |
| Installation | Floor Formers, Concrete / Screed Floors, Timber Floors |
| Application | Floor Former, Timber Floors w/ Purus Plate 130, Has Lockable Grate |
| Waste Diameter (mm) | 200 |
| Waste Outlet / Depth (mm) | Horizontal |
| Flow Rate / l/min | 48 |
| Floor Finish | Tiled Flooring, Vinyl Sheet Flooring |
| Grate Material / Finish | Plastic / White |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
