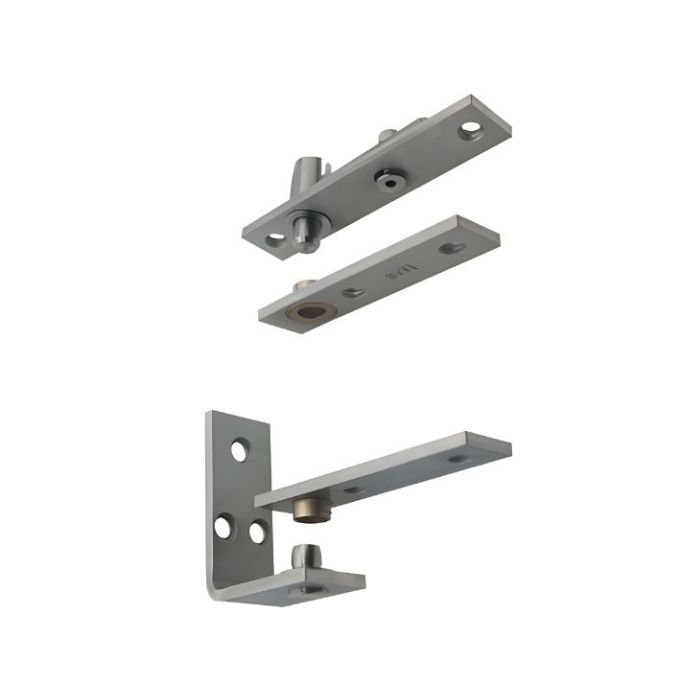

Royde & Tucker Double Action Pivot Door Set - 80kg Centre Pivot Hinge - Brushed SS

This pivot hinge set from Royde & Tucker allows doors to swing in either direction.

Constructed from stainless steel, it is British made to ensure quality.

The H131-100 is a square corner version of the H131-400 and has been designed for site installation.

Key benefits:

• Allows doors to swing in either direction
• Door plates radiused for easy preparation
• Frame mounting lower pivot
• Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
• Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
• Medium duty for internal doors weighing up to 80kg when floor mounted and up to 1100mm wide when jamb mounted
• Grade 304 stainless steel, brushed finish

Parts supplied:

• 2x Door plates - 110 x 25 x 5mm
• 1x Top frame bracket
• 1x Bottom frame bracket
• 6x 1-1/4" x No. 10 Woodscrews
• 3x 1-1/4" x No. 12 Woodscrews
• 1x Allen Key for top frame bracket adjustment
• Installation Instructions

Technical details:

• Minimum door thickness 44mm
• Medium duty for internal doors weighing up to 80kg when floor mounted
• Maximum door width 1100mm, when jamb mounted
• For 44mm non-Fire Rated doors an R9 radius is required on the pivot edge with a 4mm door and frame gap
• For 44mm thick Fire doors an R15 radius is required on the pivot edge as only a 3mm gap is permitted between the door and frame
• For 54mm thick Fire doors an R20 radius is required on the pivot edge as only a 3.5mm gap is permitted between the door and frame

Warranty:

• 25-year manufacturer warranty

Recommended accessories:

• Emergency release door stop - prevents pivot swing except in cases of emergency
• Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
