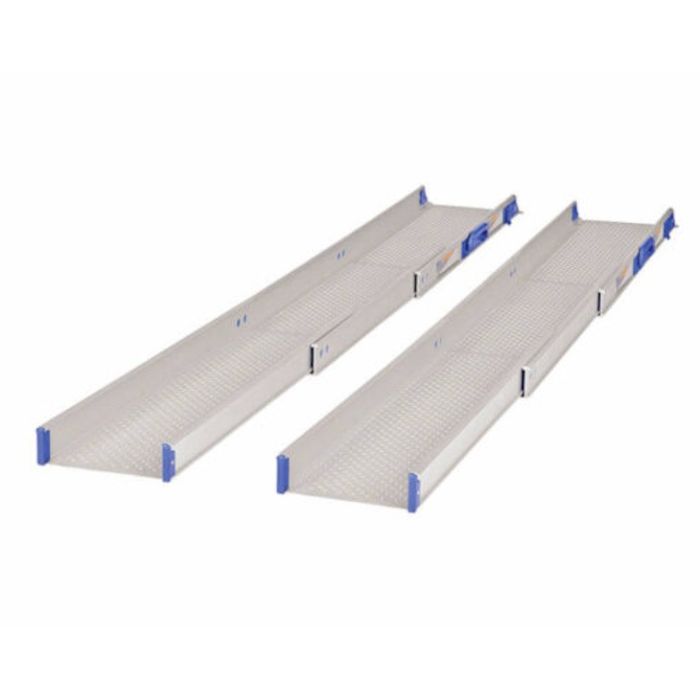

Ultralight Telescopic 3-part, Standard 18cm Channel Ramps, Min. 87 to Max. 288cm Overall Lengths - Pair

RampCentre Ultralight-Telescopic 3-part channel ramps extend up to nearly 3m and can be used when partially extended making their use flexible. The channels can be used at different lengths from each other, great for use on cross-slopes and accessing 4x4's. Two sizes with an overall length of 199cm (6ft 6”) and 288cm (9ft 5”) with a channel width of 18cm (7.08”).

Ultralight™- Telescopic 3-part channel ramps extend up to nearly 3m and can be used when partially extended making their use flexible and adaptable for different applications.

The two halves can be used at different lengths from each other, great for use on cross-slopes.

The channel ramps are also ideally suited to 4x4 and vehicles with a high tailgate.

Available in two sizes with an overall length of 199cm (6ft 6”) and 288cm (9ft 5”) with a channel width of 18cm (7.08”).

Key benefits:

  • Extremely compact storage
  • Ideal for vehicle access
  • Versatile ramps that can be used at any length, even partly extended
  • Uniquely high capacity and generous channel width
  • The two halves can be used at different lengths from each other, great for use on cross-slopes
  • Silent telescopic mechanism with neat safety clip to prevent opening when stored
  • Designed, manufactured, and stocked in the UK

Technical details:

  • All ramps have an Internal track width of: 18cm (7.08")
  • All ramps have a kerb height of: 5cm (2")
  • Product Code: PT20-3

  • Max. length: 199cm (6ft 6”)
  • Min. length: 87cm (2ft 10”)
  • Stored dimensions: 87 x 24.5 x 7cm (31 x 10 x 3”)
  • Capacity (Pair): 300kg (47st)
  • Weight each half: 6.1kg (14lbs)
  • Product Code: PT29-3

  • Max. length: 288cm (9ft 5”)
  • Min. length: 117cm (3ft 10”)
  • Stored dimensions: 117 x 24 x 7cm (46 x 10 x 3”)
  • Capacity (Pair): 250kg (39st)
  • Weight each half: 8.2kg (18lbs)

Warranty:

  • 2-year manufacturer warranty

Manufacturer product codes:

  • PT20-3, PT29-3
Technical Information
Manufacturer RampCentre
Ramp Width (cm / inches) Int. Channel 18 / 7.09"
Application / Ramp Type Channel Ramps (Pair)
Dead Weight (kg / lbs) 5.0 to 9.99 to 11.02 / 21.83
Ramp Material Aluminium
Handrails No Handrails
Stock status Available to order
Delivery timePlease Email for a lead time
Returns Status Returnable in 14 days
