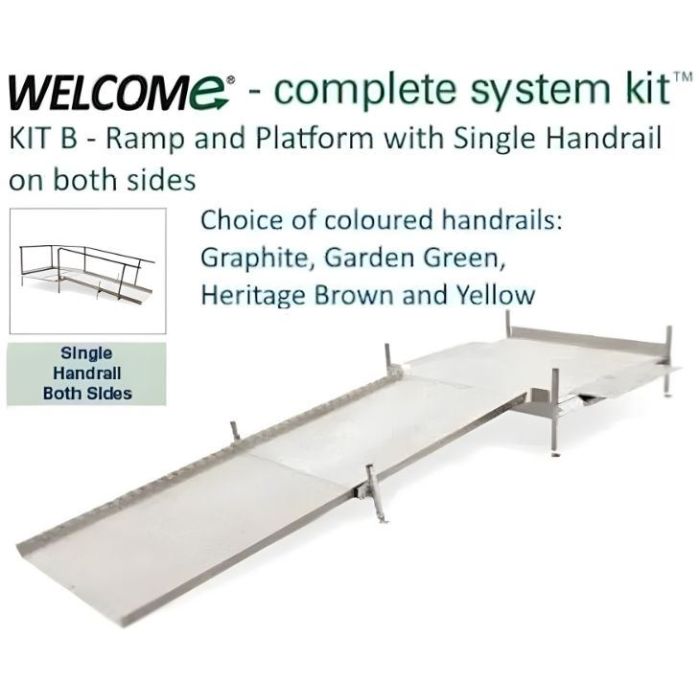

Welcome Kit B 122cm Sq. Platform, Plus Choice of 120 to 480cm Ramp Lengths, STD Ht. 38cm - 2x Single Handrails - 4x Colours

Welcome modular wheelchair ramp system for outward opening doors and where a rest area is required. The platform can be used in both straight through and turning configurations. With two single handrails available in 4x colour combinations, located on both sides of the ramp.

Each kit is supplied with the 1220 x 1220mm (4ft) square platform, plus your required ramp length 120cm (4ft) to 480cm (16ft). A standard door plate 80 x 15cm (2ft 6.2”) is included as standard. The doorplate can be positioned on any side of the platform.

Wider and deeper doorplates can be selected below if required.

Fast assembly, by one person and can be easily transported, dismantled and re-assembled and re-used as required. Offering huge benefits over traditional concrete ramps.

Suitable for a minimum step height 12.5cm (5”) to 38cm (15”) that can be increased to a maximum height of 55cm (22”) with Leg Extensions (Product Code: WLX). If required Please contact us to discuss your requirements.

Straight ramp kits without a platform are also available.

Key benefits:

• To be fully compliant with Building Regulations Document M for residential dwellings, see versions with Double Handrails
• Extremely durable construction and finish - designed for years of outdoor use
• Easily modified, adapted and reused
• Fast one-person install the heaviest component is 16kg
• The Gripdeck wearing surface is friendly to pets, high heels and has a superb grip when wet
• Built to last, the system has a huge 400kg capacity
• The handrails are pre-galvanised steel with a powder coated finish that is durable yet ‘warm to the touch’
• Height adjustable legs can be adjusted to suit ground variations and a range of step heights
• Standard self-supporting 80 x 15cm doorplate included as standard.
• Range of optional extra wider / deeper doorplates available. Please select below
• Materials: Aluminium and galvanised steel
• Designed, manufactured and stocked in the UK for delivery in 1 to 3 days depending on your Postcode

Choice of 4x handrail colour combinations:

• Original Graphite: Universally appealing soft dark grey - Posts and upper rails
• Garden Green: A traditional deep green, perfect for garden environments - Posts and upper rails
• Heritage Brown: A dark, rich brown to complement traditional and heritage buildings - Posts and upper rails
• Safety Yellow: A rich yellow, perfect for visual safety needs – upper rails
• Safety Yellow horizontal rails: Posts in Original Graphite
• All rails have Black plastic end caps and Black straps securing the horizontal rail

Technical specification:

• Overall length of platform and ramp - 240cm (8ft) to 600cm (20ft)
• Range of ramp lengths, see menu list - 120cm (4ft) to 480cm (16ft)
• Internal ramp width - 90cm (35”)
• External ramp width - 110cm (43”)
• Kerb height - 8cm (3”)
• Platform width - 122cm (48”)
• Platform length - 122cm (48”)
• Platform - Minimum installed height 12.5cm (5”)
• Platform - Maximum installed height 38cm (15”)
• Leg Extensions (Product Code: WLX) order separately in pairs - Maximum installed height 55cm (22”)
• Upper rail height - 90cm (35”)

Warranty:

• 10-year Design life

Manufacturer product codes:

• WRB12-C; WRB18-C; WRB24-C; WRB30-C; WRB36-C; WRB42-C; WRB48-C
