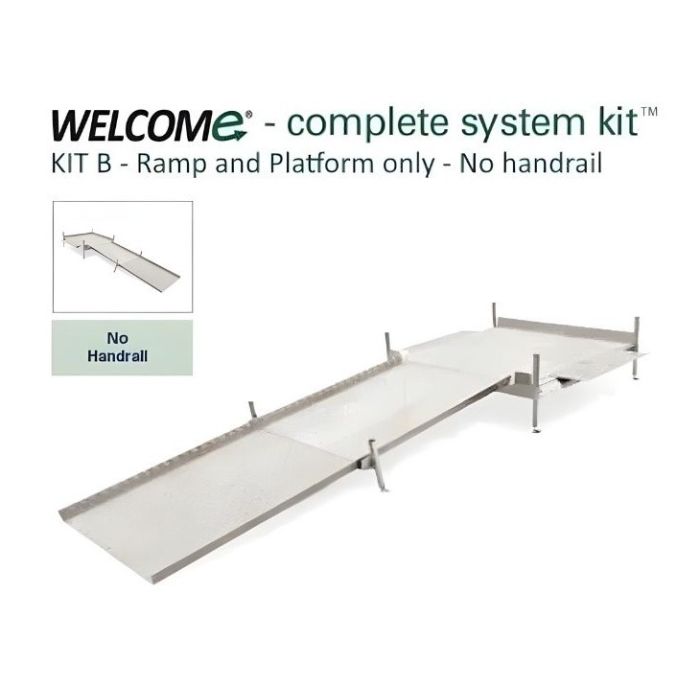

Welcome Kit B 122cm Sq. Platform, Plus Choice of Ramp Lengths 120 to 480cm, STD Ht. 38cm (No Handrails)
Welcome domestic modular wheelchair ramp system with platform for outward opening doors and or where a turning/rest area is required. No handrails. The platform includes a 80x15cm doorplate to bridge the door threshold. Internal ramp width 90cm (35”), external ramp width 100cm (40"). Max. load 400kg. Range of overall lengths for the ramp with platform 240cm (8ft), 300cm (10ft), 360cm (12ft), 420cm (14ft), 480cm (16ft), 540cm (18ft) and 600cm (20ft), platform 1220x1220mm.(48x48"). Standard Height 38cm (15”) can be increased to a maximum height of 55cm (22”) with Leg Extensions (Product Code: WLX).
Welcome modular wheelchair ramp system for outward opening doors and where a rest area is required. The platform can be used in both straight through and turning configurations.
Available with a range of ramp lengths 120cm (4ft) to 480cm (16ft), plus a 122cm (4ft) square platform with a standard door plate 80 x 15cm (2ft 6.2”), that can be placed on any side. Larger platforms can be created by joining platforms together (Product Code: WRP12-A) order separately).
This system offers fast assembly, by one person and can be easily transported, dismantled and re-assembled and re-used as required. Offering huge benefits over traditional concrete ramps.
Suitable for a minimum step height 12.5cm (5”) to 38cm (15”) that can be increased to a maximum height of 55cm (22”) with Leg Extensions (Product Code: WLX).
Straight ramp kits without a platform are also available.
Key benefits:
- To be fully compliant with Building Regulations Document M for residential dwellings, see versions with Double Handrails
- Extremely durable construction and finish - designed for years of outdoor use
- Easily modified, adapted and reused
- Fast one-person install the heaviest component is 16kg
- The Gripdeck wearing surface is friendly to pets, high heels and has a superb grip when wet
- Built to last, the system has a huge 400kg capacity
- Height adjustable legs can be adjusted to suit ground variations and a range of step heights
- Standard self-supporting 80 x 15cm doorplate included *Wider door plates also available, please contact us
- Materials: Aluminium and galvanised steel
- Designed, manufactured and stocked in delivery in 1 to 3 days depending on your Postcode
Technical specification:
- Overall ramp and platform lengths 240cm (8ft) to 600cm (20ft)
- Platform width - 122cm (48”)
- Platform length - 122cm (48”)
- Internal ramp width - 90cm (35”)
- Kerb height - 8cm (3”)
- Platform - Minimum installed height 12.5cm (5”)
- Platform - Maximum installed height 38cm (15”)
- Self-supporting Standard door plate included 80x15cm
- Leg Extensions (Product Code: WLX) order separately in pairs - Maximum installed height 55cm (22”)
- Please contact us to discuss your requirements
Warranty:
- 10-year Design life
Manufacturer product codes:
- WRB12-A; WRB18-A; WRB24-A; WRB30-A; WRB36-A; WRB42-A; WRB48-A
| Manufacturer | RampCentre |
|---|---|
| Max. Rec. HT. (cm / inches) | 12.5 / 5" Adj. to 38 / 15", 12.5 / 5" Adj. to 55 / 22" |
| Ramp Material | Aluminium & Galvanised Steel |
| Handrails | No Handrails |
| Stock status | In stock |
|---|---|
| Delivery time | 1-3 working days if ordered by 11:30am |
| Returns Status | Returnable in 14 days |
