Raise or lower with the wired control
The supplied wired hand controller allows the user to position the basin anywhere within its 250mm travel range.
Granberg Designline 417 with Mirror & Lights - Floor | Electric
Height Adjustable Washbasin Lifts
Granberg Designline 417 with Mirror & Lights - Floor | Electric

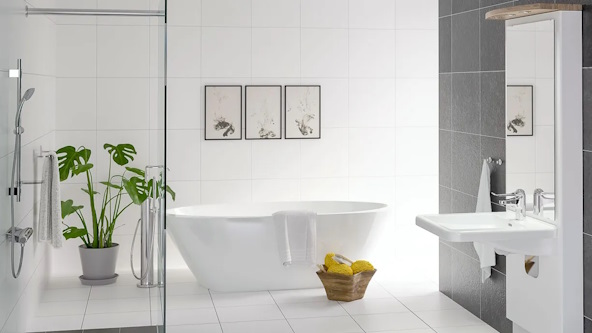

A design-led electric washbasin system with an integrated mirror and solid-oak lighting canopy, allowing the complete washing area to move together through a 250mm range.
Integrated mirror · oak canopy · 3 LED spotlights
Electric accessibility treated as part of the bathroom design
The basin lift does not have to look like an added-on mechanism
Designline 417 takes the same principle of frequent electric height adjustment and wraps it into a taller, more coordinated bathroom feature. The basin, mirror and lighting remain aligned whenever the working height changes.
Its defining visual detail is the solid oiled-oak lighting canopy with three recessed LED spotlights above the mirror, while flexible plumbing is concealed within the lifting unit.
One moving architectural feature
Mirror, basin and task lighting stay in the same relationship
The large mirror forms part of the lifting assembly, so a seated user does not end up with the basin at one height and the useful portion of the mirror at another.
Above it, the solid oiled-oak lighting ramp carries three recessed 3W LED spotlights. The spotlights are 3000K and connect to an external lighting switch.
The current Designline specification includes white and black laminate options, allowing the lift to sit more deliberately within the wider bathroom palette.
Frequent push-button adjustment
Smooth movement, with the safety system specified separately
The 417 provides the same type of continuously variable electric positioning expected from a multi-user basin lift, but its safety switch is an option rather than standard equipment on the lift itself.
Keep the services concealed
Flexible water and waste connections move with the lift while remaining hidden behind the lower cover panel.
Add the safety switch where required
Granberg specifies the 417 safety switch as an optional component, so it should be included deliberately where downward obstruction protection is required.
The Designline 417 is an electric lift, but the safety switch is
not described as standard equipment in Granberg's specification.
Confirm the chosen configuration includes the required safety
component before ordering.
A closer look at the Designline family
The same integrated lift can be paired with very different basin shapes
These Designline configurations show how the appearance and projection change with the selected basin while the tall moving mirror and oak lighting canopy remain consistent.
Four principal basin configurations
Choose projection and front-edge design around the user
The Designline family uses the same 715mm-wide lifting unit with four Granberg basin shapes. The compact 417-11 reduces overall projection most significantly, while the other three configurations extend to approximately 672mm from the wall.
Accessible rounded basin with a tapered front edge and generous seated approach.
Accessible porcelain basin with thicker rounded edges and useful flat surfaces.
Compact washbasin configuration for children or bathrooms where projection is restricted.
Shallow solid-surface basin with integrated gripping areas around the front edge.

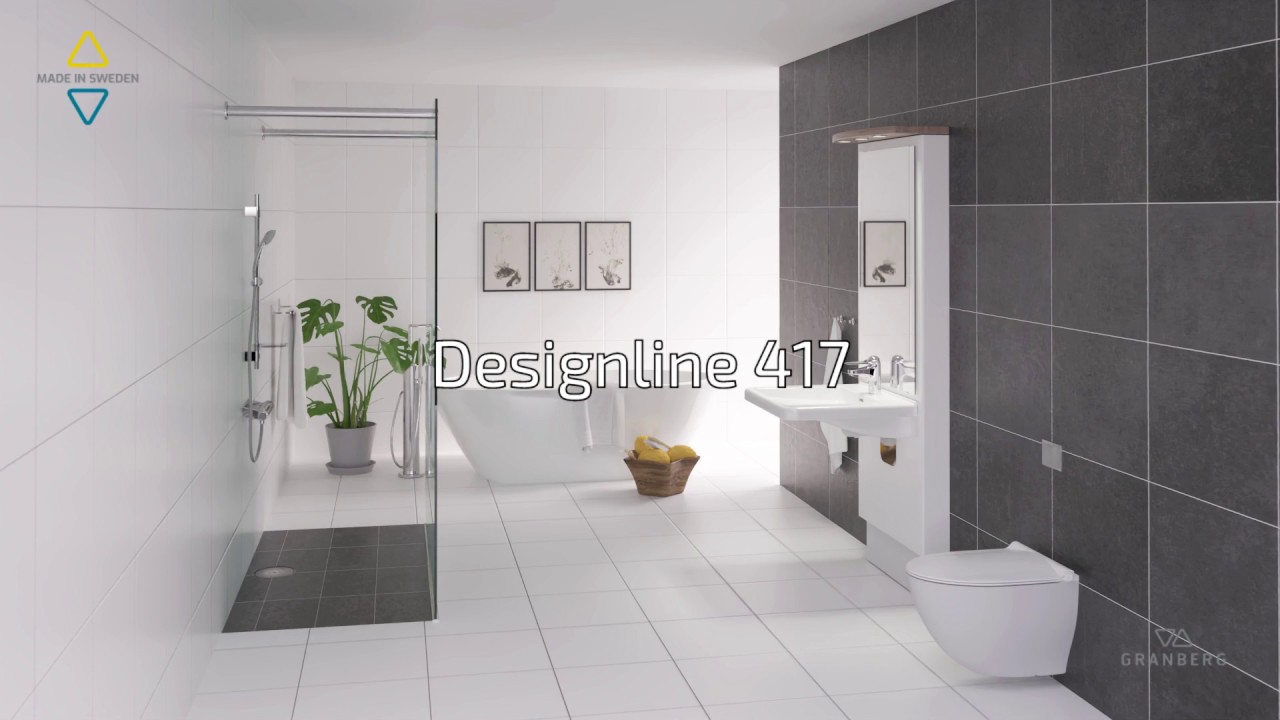

See the complete assembly move
Watch the Designline 417 in motion
The movement is easier to understand when you can see the washbasin, mirror and lighting canopy travelling together as one complete unit.
Useful before choosing
Understand basin lifts and electric adjustment
What Is a Basin Lift?
Learn how height-adjustable washbasins work and what movement, basin design and installation details should be considered around the user.
Read the basin lift guide →What Is an Electric Basin Lift?
Compare Granberg's electric washbasin systems and decide whether an integrated moving mirror, fixed mirror or more design-led finish best suits the bathroom.
Read the electric basin guide →
Made by Granberg
Accessible living engineering from Sweden
Granberg develops manual, gas-assisted and electric height-adjustable washbasin systems so practical access can be integrated into bathrooms with very different layouts and visual requirements.
Explore Granberg →Washbasin specification support
Want electric adjustment without compromising the bathroom design?
Tell us who will use the washbasin, the available wall space, preferred basin style and how the mirror and lighting need to fit the room. We can help compare Designline 417 with the simpler 415 and compact integrated 433.
