EVOline One DisQ with UK Socket & Wireless Charger – Choice of Colour
EVOline One DisQ combines a single UK socket and wireless smartphone charger in one discreet, space-saving unit. Available in six finish combinations and suitable for horizontal installation or upgrading an existing EVOline One installation. Two power sockets are required beneath the worktop.
EVOline One DisQ combines a single UK socket and wireless smartphone charger in one discreet, space-saving unit. The socket and wireless charger can be used simultaneously, providing convenient access to power without cluttering the work surface.
Designed for horizontal installation, the EVOline One DisQ can also be retrofitted to an existing EVOline One installation with a small adjustment. It is available in six bezel and housing finish combinations.
Important: Two available power sockets are required beneath the worktop: one for the UK socket supply cable and one for the wireless charger adaptor.
Key benefits:
- Combined UK socket and wireless smartphone charger
- Discreet, space-saving design
- Socket and wireless charger can be used simultaneously
- Low installation depth
- Designed for horizontal installation
- Can be retrofitted to an existing EVOline One installation with a small adjustment
- Choice of six finish combinations
Technical details:

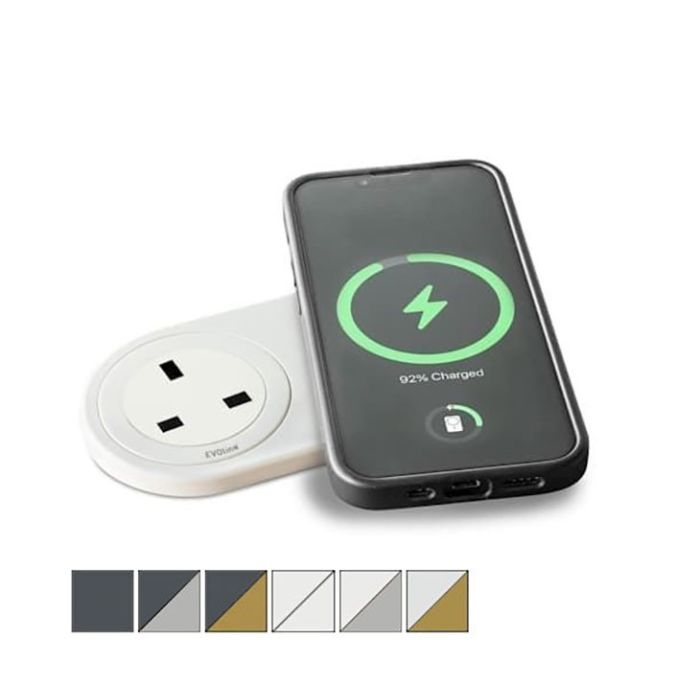

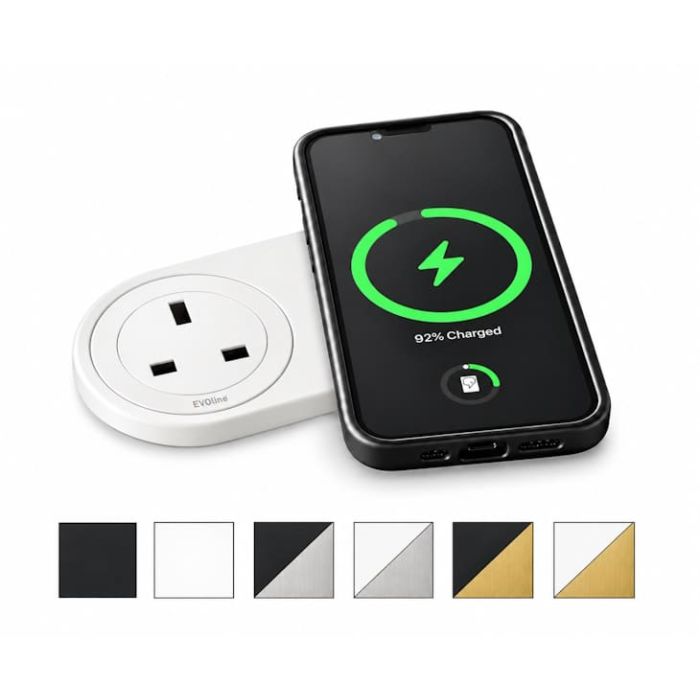

- Choice of colour – please see the image gallery for the available finish combinations and materials
- 1 x UK power socket
- 1 x wireless smartphone charger
- Cut-out diameter: 54mm
- Minimum installation depth: 50mm
- Overall length: 150.5mm
- Overall width: 70.5mm
- Standard wing clamps suitable for installation thicknesses of 9–25mm
- Nominal voltage: 230V AC
- Nominal current: 5A
- Maximum input power: 1150W
- Protection rating: IP20
- UK socket is non-fused
- The smartphone must be positioned centrally on the charging surface
Supplied parts:
- 1.5m supply cable with 13A UK plug
- DisQ wireless charging cover with 1.5m USB cable and USB-C plug
- 20W UK power adaptor with USB-A and USB-C ports, supplied loose in the box
- Standard wing clamps
Warranty:
- 1-year warranty
Installation notes:
- Two available power sockets are required beneath the worktop
- Do not prepare the cut-out before receiving the product, as this will help ensure the correct fit
| Manufacturer | EVOline |
|---|---|
| Number of sockets | 1 Socket |
| Wireless Charging | Yes |
| USB - A | No |
| USB - C | No |
| Approvals | UKCA Mark |
| Stock status | In stock |
|---|---|
| Delivery time | 1-3 working days |
| Returns Status | Returnable in 14 days |
