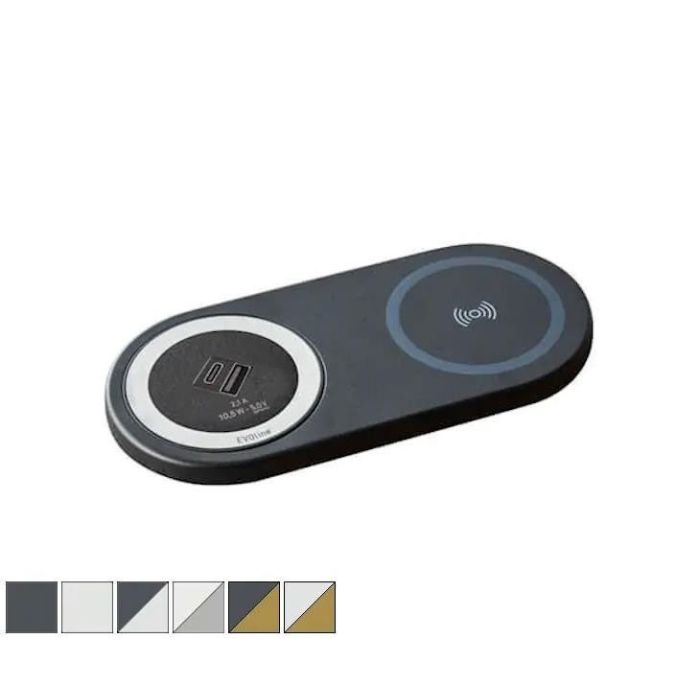

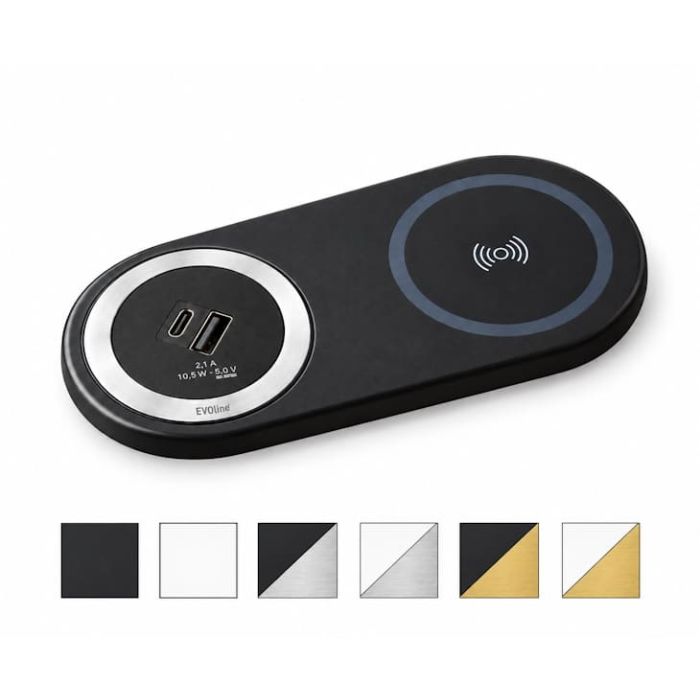

EVOline One DisQ with USB-A + USB-C & Wireless Charger – Choice of Colour
EVOline One DisQ combines USB-A and USB-C charging with an integrated wireless smartphone charger. This discreet, space-saving unit is available in six finish combinations and is designed for horizontal installation. Two power sockets are required beneath the worktop.
EVOline One DisQ combines one USB-A port, one USB-C port and an integrated wireless smartphone charger in a discreet, space-saving unit. The USB ports and wireless charger can be used simultaneously, providing convenient charging access without cluttering the work surface.
Designed for horizontal installation, the EVOline One DisQ can also be retrofitted to an existing EVOline One installation with a small adjustment. It is available in six bezel and housing finish combinations.
Important: Two available power sockets are required beneath the worktop: one for the USB-A and USB-C charger and one for the wireless charger adaptor.
Key benefits:
- Combined USB-A, USB-C and wireless smartphone charging
- USB ports and wireless charger can be used simultaneously
- Discreet, space-saving design
- Low installation depth
- Designed for horizontal installation
- Can be retrofitted to an existing EVOline One installation with a small adjustment
- Choice of six finish combinations
Technical details:
- Choice of colour – please see the image gallery for the available finish combinations and materials
- 1 x USB-A charging port
- 1 x USB-C charging port
- 1 x wireless smartphone charger
- USB-A and USB-C output: up to 5V/2.1A, 10.5W maximum shared
- Cut-out diameter: 54mm
- Minimum installation depth: 50mm
- Overall length: 150.5mm
- Overall width: 70.5mm
- Standard wing clamps suitable for installation thicknesses of 9–25mm
- Protection rating: IP20
- The smartphone must be positioned centrally on the charging surface
Supplied parts:
- 3m supply cable with 13A UK plug for the USB-A and USB-C charger
- DisQ wireless charging cover with 1.5m USB cable and USB-C plug
- 20W UK power adaptor with USB-A and USB-C ports, supplied loose in the box
- Standard wing clamps
Warranty:
- 1-year warranty
Installation notes:
- Two available power sockets are required beneath the worktop
- Do not prepare the cut-out before receiving the product, as this will help ensure the correct fit
| Manufacturer | EVOline |
|---|---|
| Number of sockets | 0 Socket |
| Wireless Charging | Yes |
| USB - A | Yes - 1x |
| USB - C | Yes - 1x |
| Approvals | UKCA Mark |
| Stock status | In stock |
|---|---|
| Delivery time | 1-3 working days |
| Returns Status | Returnable in 14 days |
