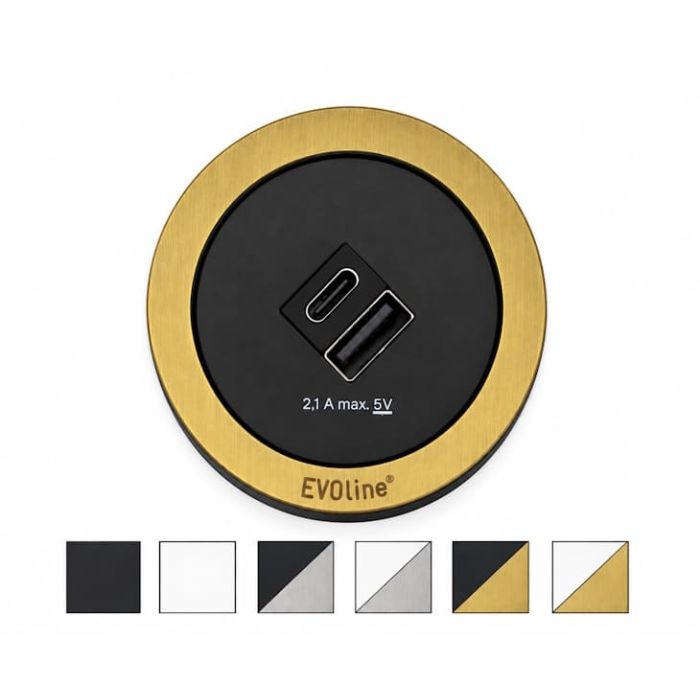

EVOline One USB-A & USB-C Charger – Choice of Colour

EVOline One double USB charger with one USB-A port and one USB-C port, available in six bezel and housing finish combinations. This compact, discreet charging solution is suitable for horizontal or vertical installation. Its flexible cable entry enables a minimum installation depth of just 50mm.

Key Benefits:

• Compact, space-saving charging solution
• One USB-A port and one USB-C port
• Suitable for horizontal or vertical installation
• Choice of six bezel and housing finish combinations
• Flexible cable entry enables a minimum installation depth of 50mm

Available Finishes:

• Black bezel with black housing
• White bezel with white housing
• Brushed stainless-steel bezel with black housing
• Brushed stainless-steel bezel with white housing
• Brass-effect bezel with black housing
• Brass-effect bezel with white housing

Technical Details:

• USB ports: 1 × USB-A and 1 × USB-C
• Input voltage: 110–240V AC
• Input frequency: 50–60Hz
• Shared output voltage: 5V DC
• Shared output current: 2.1A maximum
• Shared output power: 10.5W maximum
• Cut-out diameter: 54mm
• Minimum installation depth: 50mm
• Installation thickness with standard wing clamps: 9–25mm
• Protection rating: IP20

Supplied Parts:

• EVOline One USB charger with USB-A and USB-C ports
• 3m supply cable with 13A UK plug
• Standard wing clamps

Additional Clamp Option:

• Wing clamps for installation thicknesses of 21–38mm are available on request

Warranty:

• 1-year warranty

Please Note:

• The 2.1A and 10.5W maximum output is shared between the USB-A and USB-C ports
• Do not cut the installation opening before receiving the product, as this will help ensure the correct fit
