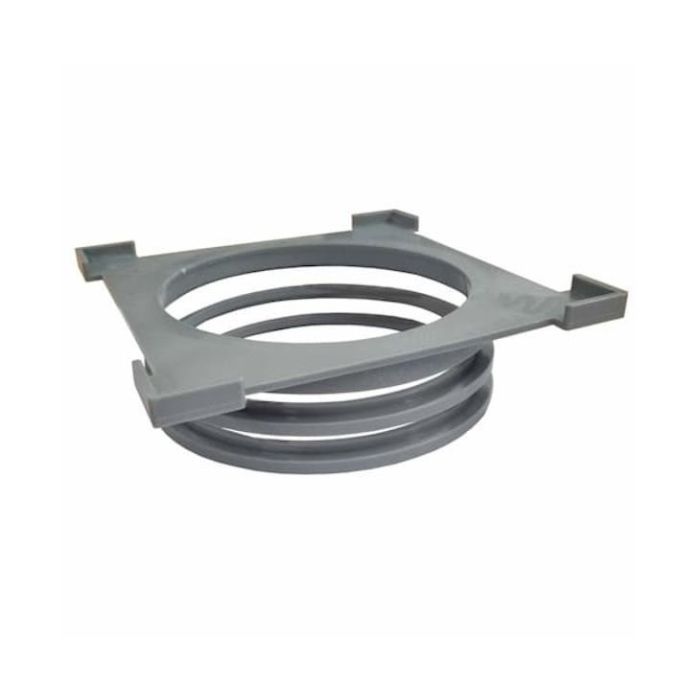

GA155 Grid Adaptor for Purus Mini Drains, Tiled Floors & PK155 Grids
Grid adaptor for Purus Mini drains and PK155 grates, supplied with 2 riser rings for adjusting grate height to suit tiled floors up to 20 mm thick.
The PK155 Grid adaptor, is for use with the Purus Mini Drains and the Purus PK155 Grids. The grid adaptor allows the user to easily install the compatible Purus grates/grids and wastes, with tiled flooring.
Technical details:
- Use the appropriate number of riser rings for your tile thickness
- Supplied with 2 riser rings, one and two extra riser rings can be Selected
- Width and Length of 147 mm
- Diameter of 109 mm
- Number of rings for tile thickness:
- - 6-8 mm tile = 0 rings
- - 10-12 mm = 1 ring
- - up to 15 mm = 2 rings
- - up to 18 mm = 3 rings
- - 20 mm tiles = 4 rings
- Compatible Grids: 154x154 mm
Compatible Wastes:
- Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (SKU: 52719)
- Purus Mini Oden 50 Horizontal Outlet (SKU: 7113535UK)
- Purus Minimax 50 Horizontal Outlet (SKU: 7113764UK)
- Purus Mini Brage 50 Vertical Outlet (SKU: 7113539UK)
- Purus Mini Brage 110 Vertical Outlet (SKU: 7113538UK)
Warranty:
- Life of Tiling guarantee
| Manufacturer | Purus |
|---|---|
| Grate Material / Finish | Plastic / Grey |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code:
GA155
RRP Inc. VAT: £25.50 Save 20%
In stock
Next working day
Click and Collect Available VAT Exemption is available on this product - deducted at Checkout (Info)
Grid adaptor for Purus Mini drains and PK155 grates, supplied with 2 riser rings for adjusting grate height to suit tiled floors up to 20 mm thick.
In stock
£20.40
£17.00
Click & Collect Available
Need it fast? Add to cart and select click and collect at the checkout
