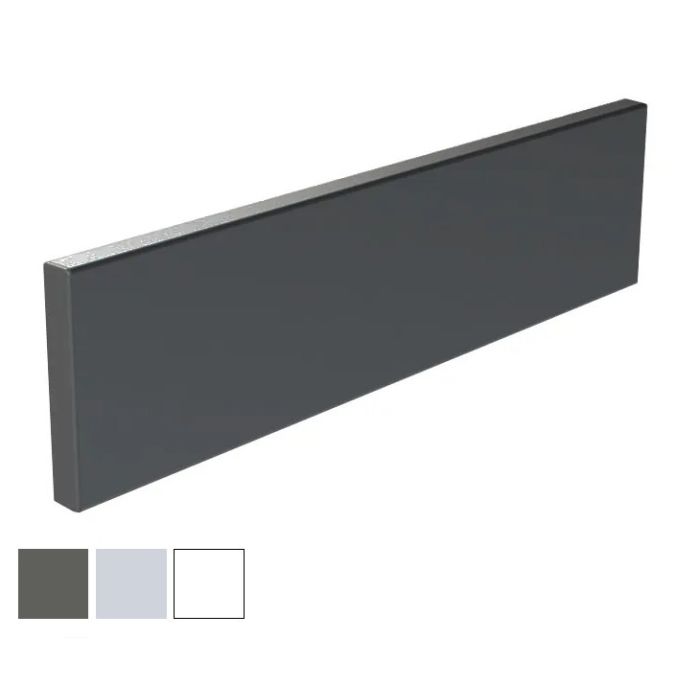

Granberg Alu-Fronts 103 mm, for HA Series & Centerlift 6490H, Custom Size 1801-2400 mm - Choice of Colour
Worktop fascia front with integrated cable management channels, designed for Granberg Baselift HA, Plusmodule, Manulift HA, Sidelift 6400 and Centerlift 6490H height-adjustable kitchen systems. Manufactured from aluminium and custom made to sizes between 1801-2400 mm. 103 mm high x 16 mm thick. Available in White RAL 9003 powder-coated aluminium, Anodised Aluminium and Anthracite finishes.
Granberg worktop fascia fronts are designed for use with Granberg Baselift HA, Plusmodule, Manulift HA, Sidelift 6400 and Centerlift 6490H height-adjustable kitchen systems, providing a clean and integrated finish to accessible kitchen installations.
Manufactured from aluminium with integrated cable management, the fascia fronts allow electrical cables to be discreetly routed through the profile where required, helping maintain a cleaner and more professional installation.
These 103 mm high fascia fronts are particularly suited to installations incorporating Granberg drawer systems, Sidelift worktop systems and height-adjustable island solutions, helping create a coordinated and premium kitchen appearance.
The fascia fronts are custom made to sizes between 1801 mm and 2400 mm and can also be trimmed further on site if required. Removable end caps help conceal cut edges for a neat finished appearance.
Available in a choice of finishes including White RAL 9003, Anodised Aluminium and Anthracite, the fascia fronts coordinate with a wide range of modern kitchen designs and accessible kitchen systems.
When ordered together with a Granberg worktop lift, compatible control buttons and key switches can be factory pre-fitted into the fascia front to simplify installation.
Key benefits:
- 103 mm worktop fascia front for Granberg height-adjustable systems
- Compatible with Baselift HA, Plusmodule, Manulift HA and Sidelift 6400 systems
- Compatible with Centerlift 6490H island lifts
- Manufactured from aluminium
- Integrated cable channels for discreet cable routing
- Custom made to sizes between 1801-2400 mm
- Can be trimmed further on site if required
- Removable end caps conceal cut edges
- Suitable for accessible and inclusive kitchens
- Compatible with factory fitted control buttons and key switches
Available finishes:
- 01 – White powder-coated aluminium (RAL 9003)
- 06 – Anodised aluminium
- 07 – Anthracite
Technical details:
- Compatibility: Granberg Baselift HA, Plusmodule, Manulift HA, Sidelift 6400 and Centerlift 6490H systems
- Height: 103 mm
- Thickness: 16 mm
- Width options: 1801-2400 mm
- Material: Aluminium body with plastic end caps
Installation notes:
- If ordered together with a worktop lift, buttons and key switches can be factory pre-fitted
- Please specify preferred button and switch locations when ordering
Warranty:
- 3-year manufacturer warranty
Please note:
- Due to the made-to-order nature of this product, fascia fronts are non-returnable
Manufacturer product codes:
- 385H-189-01, 385H-189-06, 385H-189-07, 385H-190-01, 385H-190-06, 385H-190-07, 385H-199-01, 385H-199-06, 385H-199-07, 385H-200-01, 385H-200-06, 385H-200-07, 385H-209-01, 385H-209-06, 385H-209-07, 385H-210-01, 385H-210-06, 385H-210-07, 385H-219-01, 385H-219-06, 385H-219-07, 385H-220-01, 385H-220-06, 385H-220-07, 385H-229-01, 385H-229-06, 385H-229-07, 385H-230-01, 385H-230-06, 385H-230-07, 385H-239-01, 385H-239-06, 385H-239-07, 385H-240-01, 385H-240-06, 385H-240-07
| Manufacturer | Granberg |
|---|---|
| Compatible Model | Baselift 6300HA, Baselift 6310HA, CRN Baselift 6301HA, CRN Baselift 6311HA, CRN Baselift 6302HA, CRN Baselift 6312HA, CRN Baselift 6303HA, CRN Baselift 6313HA, Plusmodule 6305HA, Plusmodule 6306HA, Plusmodule 6315HA, Plusmodule 6316HA, Manulift 6350HA, Manulift 6380HA, Centerlift 6490HA |
| Accessory Width (mm) | 2001 to 2400 |
| Stock status | Made to order |
|---|---|
| Delivery time | 2-3 weeks |
| Returns Status | Custom Made, non-returnable |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code:
385H-189240
Made to order (Info)
2-3 weeks VAT Exemption is available on this product - deducted at Checkout (Info)
Worktop fascia front with integrated cable management channels, designed for Granberg Baselift HA, Plusmodule, Manulift HA, Sidelift 6400 and Centerlift 6490H height-adjustable kitchen systems. Manufactured from aluminium and custom made to sizes between 1801-2400 mm. 103 mm high x 16 mm thick. Available in White RAL 9003 powder-coated aluminium, Anodised Aluminium and Anthracite finishes.
