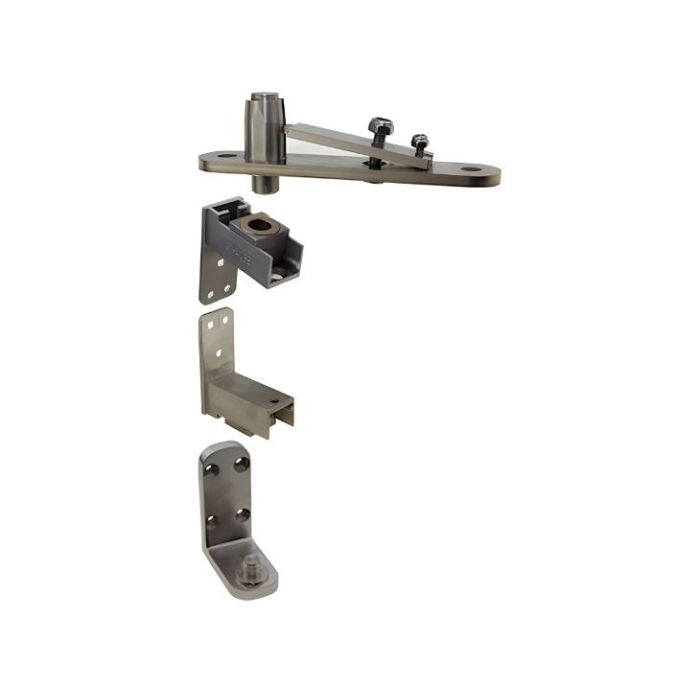

Royde & Tucker Double Action Pivot Door Set, 80kg ADJ Top Centre & Bottom Pivot - Satin SS

Pivot hinge set from Royde & Tucker that allows a door to swing in either direction.

This version is suitable for medium duty internal doors, adjustable top centre and bottom pivot with a maximum door weight of 80kg. Constructed from satin stainless steel.

Key benefits:

• Adjustable top centre and bottom pivot
• Allows doors to swing in either direction
• Door plates radii for easy preparation
• Bottom bracket is frame mounted
• Perfect for medium duty internal doors
• Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
• Set includes door bottom pivot, top centre, door brackets and screws
• Maintenance free - manufacturer's guarantee of 25 years
• Satin Stainless steel - grade 304

Technical details:

• Adjustable top centre and bottom pivot
• Allows +/- 5.5mm lateral adjustment at head and base of door
• Minimum door thickness 44mm
• To suit doors up to 80kg
• Maximum door width 1100mm
• 44mm thickness doors require R9 radius on pivot edge
• 54mm thick doors require R15 radius on pivot edge

Parts supplied:

• 2 x Adjustable door bracket
• 1 x Top frame bracket
• 1 x Frame mounting bottom pivot bracket
• 8 x 1-1/4" x No. 10 Woodscrews
• 6 x 1-1/4" x No. 8 Woodscrews
• 1 x Allen Key for adjusting frame brackets and top bracket
• Installation Instructions

Warranty:

• 25-year manufacturer warranty

Note:

• Adjustable door pivots are NOT suitable for Fire Doors. Use Product Code: H131-400 as an alternative, that is suitable for use on FD30 / FD60 Fire Doors

Also available separately:

• Emergency release door stop - prevents pivot swing except in cases of emergency
• Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
• Non-adjustable alternative see Product Code: H131-400
