GEZE Double Action Pivot Door Set - 150kg
GEZE Pivot hinge set. Allows doors to swing in either direction. Suitable for heavy timber and metal doors weighing up to 150kg. Suitable for 1hr fire doors. Galvanised steel bottom strap and stainless steel pivot cover plate.
GEZE double action pivot set enables doors to swing in either direction.
With a bottom strap made from galvanized steel and stainless steel pivot cover plate, suitable for doors weighing up to 150kg.
- Pivot door hinge set
- Suitable for doors of up to 150kg
- Floor pivot plate: stainless steel
- Floor pivot plate (L x W): 90 x 44 mm
- Bottom stap: Galvanised steel
- Bottom stap: (L x W): 270 x 30mm
- For Timber and Metal doors
- Suitable for 1hr fire doors
- Manufactured in Germany by GEZE

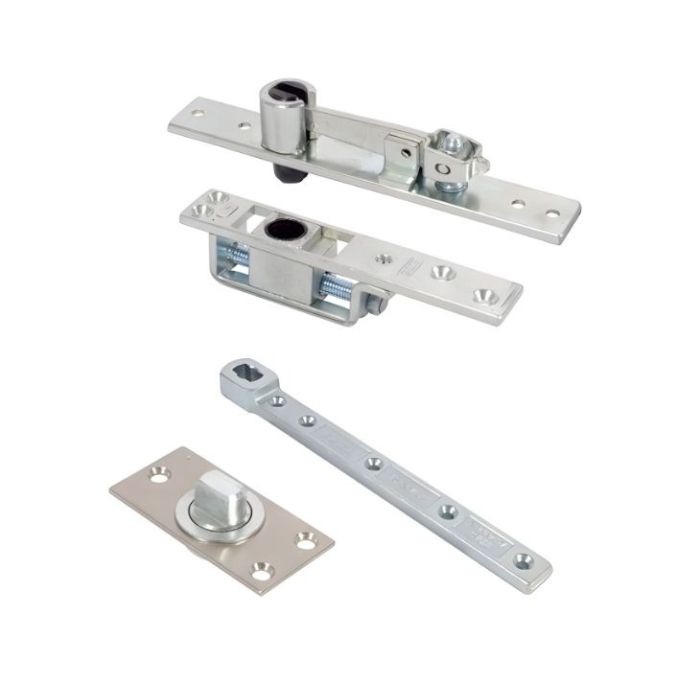

Includes:
- Floor closer spindle
- Bottom strap
- Double action top centre, upper and lower parts
- - With vertical height adjuster
- - Pivot retractor screw, with locking grub screw
- Fixing screws
Fire Door installations:
- To ensure integrity and to comply with Certificate requirements for 1-hour rating, these components should be fitted using additional intumescent material (Not included)
- See PDF downloads for technical information
- Please contact Geze Technical Department for more information: 01543 443000
| Manufacturer | GEZE |
|---|---|
| Max. Load (kg) | 150 |
| Suitable For FD30 / FD60 Fire Doors | Yes |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
(Size: 0.8 MB)
[mgz_pagebuilder]{"elements":[]}[/mgz_pagebuilder]
(Size: 0.36 MB)
[mgz_pagebuilder]{"elements":[]}[/mgz_pagebuilder]
GEZE Pivot hinge set. Allows doors to swing in either direction. Suitable for heavy timber and metal doors weighing up to 150kg. Suitable for 1hr fire doors. Galvanised steel bottom strap and stainless steel pivot cover plate.
In stock
£181.20
£151.00
Product Code:
932.10.760
In stock (Info)
Next working day if ordered by 4pm VAT Exemption is not available on this product (Info)
