Height-Adjustable Tables: Lifts

Floor-mounted electric lifting frames for creating open, height-adjustable kitchen tables and work surfaces. Available for worktops from 600mm to 1200mm deep.

Shop the table lifts ↓ Which 9600H do I need?

1200–2800mm worktop widths 600–1200mm worktop depths 200kg lifting capacity 400mm height adjustment

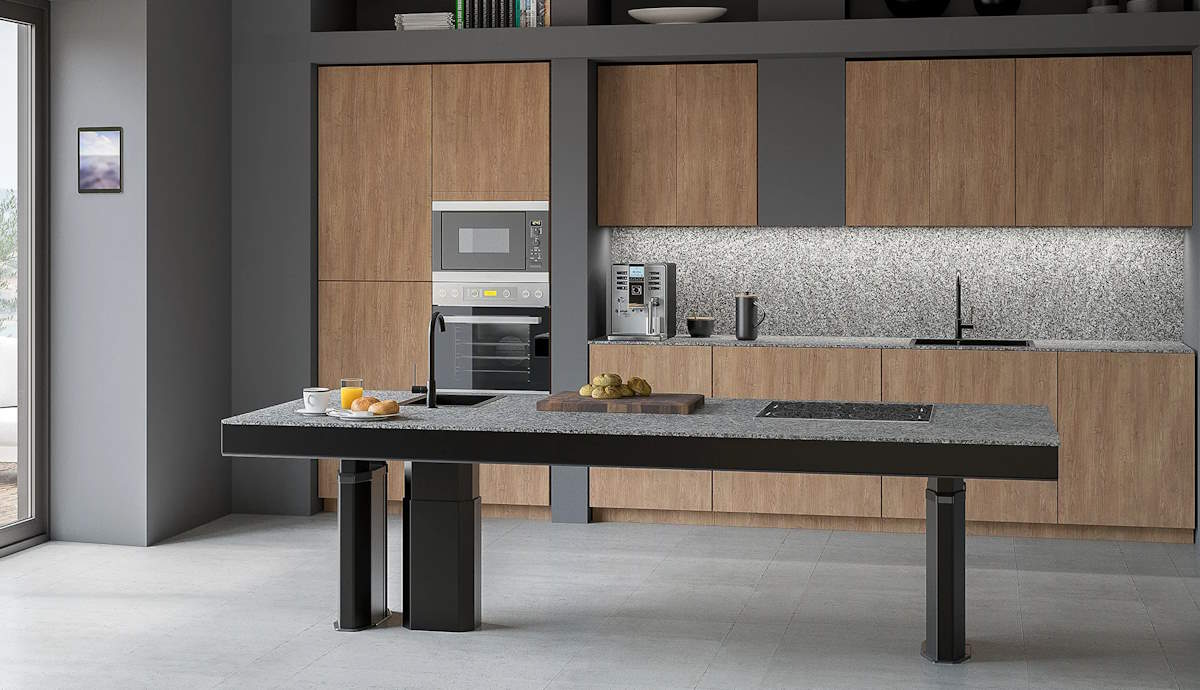

Granberg Centerlift 9600H height adjustable kitchen table

Open-frame height adjustment for seated, standing and shared use

Shop the lifting systems

Granberg Centerlift 9600H

5 worktop depths · White or Anthracite · multiple width options

Compare the five versions →

A work surface without the bulk of a cabinet island

More like an adjustable table. Capable of much more.

Centerlift 9600H is an electric floor-mounted frame designed to carry a bespoke kitchen worktop while preserving an unusually open area beneath it.

That makes it well suited to kitchens where approach space, legroom and shared use are priorities. A simple worktop can create a height-adjustable preparation, dining or baking table, while compatible shallow sinks and cooking hobs can also be incorporated where the project requires more functionality.

The worktop itself is not supplied with the lift. Instead, five frame depths and a broad choice of widths allow the finished surface to be designed around the room and the people using it.

Centerlift 9600H

Open-frame flexibility

One lifting platform can support a straightforward adjustable table or a more functional work surface with carefully planned kitchen equipment.

Frame width 1180–2780mm

Worktop width 1200–2800mm

Frame depth 580–1180mm

Lift capacity 200kg

Adjustment 400mm

Choose the worktop depth

9600HA

580mm frame

For 600mm worktops

Slimmest option for narrower table-style working surfaces.

9600HC

780mm frame

For 800mm worktops

Additional surface depth while retaining an open table-style form.

9600HD

880mm frame

For 900mm worktops

A versatile intermediate depth for larger preparation surfaces.

9600HE

980mm frame

For 1000mm worktops

Generous depth for broad shared working and social surfaces.

9600HG

1180mm frame

For 1200mm worktops

Deepest version for substantial central work and gathering areas.

Choose the frame finish

White

RAL 9003 powder-coated aluminium. A clean, understated finish that works well beneath lighter kitchen schemes.

Anthracite Sablé

YW359F textured powder-coated aluminium for darker or more architectural kitchen schemes.

Choose the frame width

1180 1380 1580 1780 1980 2180 2380 2580 2780

Why the open frame matters

Working space above. Legroom below.

The 9600H is fundamentally a lifting frame rather than a cabinet system. Its relatively open underside allows the finished worktop to behave more like a table or freestanding work surface.

That can make approach easier from different directions and gives designers more freedom to create preparation, dining, baking or shared working zones without automatically filling the space beneath with fixed storage.

Where additional kitchen functions are needed, the motors can be repositioned sideways so that shallow sink bowls, hobs and services can be planned into the worktop.

Open legroom beneath Granberg Centerlift 9600H height adjustable worktop

The worktop and its functions move together, while the open-frame structure preserves usable approach space below.

700–1100

Frame height

Motorised adjustment measured excluding the finished worktop.

400mm

Vertical travel

Stepless movement allows the work surface to be positioned between its upper and lower limits.

200kg

Lifting force

Capacity includes the worktop and anything incorporated into or carried by the moving surface.

30mm/s

Movement speed

Smooth electric movement for regular adjustment between different working heights.

103mm

Front-frame height

A deliberately compact aluminium front profile beneath the worktop.

Start simple or add kitchen functions

The lift does not decide what the table becomes

The supplied system is the lifting frame and worktop mounting hardware. The finished top and its functions are designed separately around the intended use.

Preparation & dining

Keep the surface simple and the 9600H becomes a large adjustable preparation, baking, dining or shared working table with generous open space below.

Add a shallow sink

A suitable shallow sink can be integrated into the worktop. Motor positions can be shifted sideways where required to create space for the bowl and associated services.

Add a cooking hob

A compatible hob can also be incorporated, subject to appliance dimensions, protective requirements and the complete project design.

Granberg Centerlift 9600H used as an adjustable kitchen work surface

The same open lifting platform can support anything from a simple table-style surface to a more functional kitchen worktop.

See the movement

One work surface. Different working heights.

The 9600H moves the complete worktop through a 400mm vertical range, allowing its position to be changed for seated users, standing users and different kitchen tasks.

The movement is stepless, so the surface does not have to stop at predetermined height settings.

Perimeter safety strip

The safety strip beneath the frame stops the lifting movement if it contacts an obstruction while travelling.

Adjustable motor positions

The motors can be repositioned sideways before floor fixing to make room for sinks, hobs and service routes.

Plug-and-play electronics

The motor and electronic system is designed around plug-and-play connections, simplifying final system assembly and commissioning.

Choice of operation

Compatible corded controls and radio-control options allow the operating method to be selected around the final kitchen and user.

Confirm the worktop depth

This determines whether HA, HC, HD, HE or HG is the correct lifting frame.

Confirm the finished width

Choose a frame between 1180 and 2780mm to support worktops from approximately 1200 to 2800mm wide.

Decide what happens above

Establish whether the surface is purely a table or whether a sink, hob or other equipment needs to be integrated.

Confirm floor fixing

The motors are floor mounted. Check the floor construction and fixing positions before finalising the installation.

Plan flexible services

If water, waste or electrical services move with the top, they must safely accommodate the full 400mm adjustment range.

Select controls & accessories

Decide how the lift will be operated and whether service concealment or other accessories are needed before completing the specification.

The worktop is not included with the 9600H lifting frame.

Worktop mounting brackets are supplied, but the finished top, sink, tap, appliances, plumbing components and electrical accessories should be planned separately unless a particular product option explicitly states otherwise. Technical drawings and downloadable documents are available on the individual product pages.

Previous generation Granberg Centerlift 960 in Kitchen Three

See the principle in Kitchen Three

Experience the previous-generation Centerlift 960

Kitchen Three in our Petersfield showroom contains the earlier Centerlift 960 system. It remains a useful way to experience how an open height-adjustable central work surface feels and moves in a real kitchen.

You can compare seated and standing working positions and see how a floor-mounted adjustable surface interacts with the surrounding cabinetry and circulation space.

Please note: the showroom model is the previous-generation Centerlift 960, not the current Centerlift 9600H sold on this page. Current dimensions, specifications and components should therefore be taken from the 9600H product documentation.
