LA — worktops & hobs
The slimmer configuration for straightforward preparation surfaces and hob installations.
- Worktop preparation areas
- Cooking hob integration
- Compact control arrangements
- Slimmer visual front edge
Granberg Baselift 6300LA, 6310LA - For worktops & hobs
Granberg Baselift 6300LA, 6310LA - For worktops & hobs
Height Adjustable Worktops
Granberg Baselift 6300LA & 6310LA
Slimline electric worktop lifts for accessible preparation and cooking areas, with a 40mm front designed around worktops, cooking hobs and compact controls.
40mm front
Wall or floor mounted
300mm adjustment
100kg lifting force
Watch the worktop adjust between working heights
Choose what to browse
Main worktop lifts or Plusmodule extensions?
Start with a 6300LA or 6310LA main lift. Choose Plusmodules when you are extending a compatible system.
Showing the main Baselift LA worktop lifts below.
A streamlined Baselift for cooking and preparation
LA means a slimmer 40mm front
Baselift 6300LA and 6310LA create a straight, electrically height-adjustable kitchen worktop with open knee and leg space beneath the working surface.
The defining feature of the LA configuration is its low 40mm front. That makes it particularly well suited to preparation surfaces and worktops containing a cooking hob, where the deeper space required for a sink bowl or drawer is not needed.
At the touch of a control, the complete worktop can travel through 300mm of stepless adjustment, allowing the same preparation or cooking area to be positioned for seated and standing users.
One distinction worth getting right
LA for worktops and hobs. HA for sinks and drawers.
Both families use the Baselift 6300 / 6310 principle, but their front-frame depth is designed around different kitchen functions.
HA — sinks & drawers
The deeper Baselift front creates space for features that require more room beneath the worktop.
- Shallow kitchen sinks
- Drawer integration
- Deeper under-worktop components
- More complex working areas

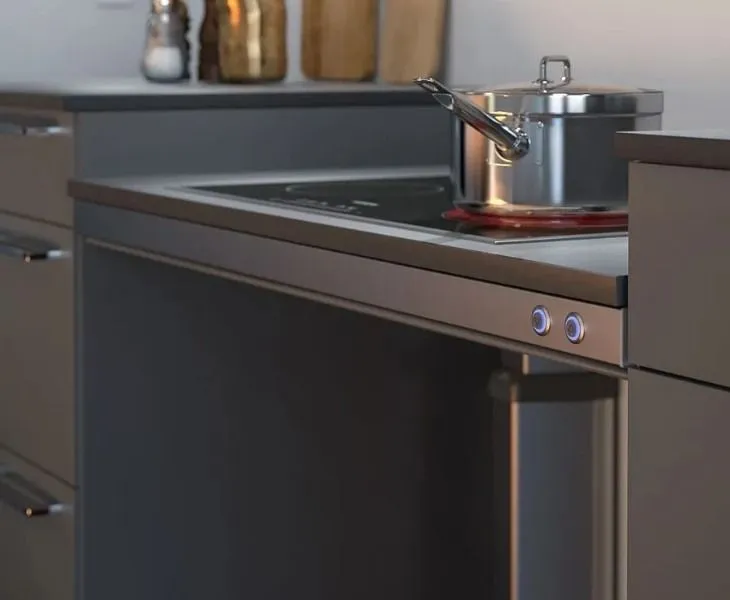

Cooking at the right working height
Move the hob with the worktop
A hob installed into the adjustable surface moves together with the surrounding worktop, allowing the cooking position itself to be set at a more suitable working height.
This is different from simply installing a permanently lowered worktop. The same cooking area can be adjusted again when a standing user needs it.
The hob position, supporting frame, electrical connection and safety protection should therefore be considered together when the worktop is designed.
The low 40mm LA front is designed around preparation
surfaces and hob installations.
Choosing the mounting method
6300LA or 6310LA? The difference is what supports the lift.
The working principle, adjustment range and 40mm LA front are shared. The choice between 6300 and 6310 is fundamentally a structural one: wall mounted or floor mounted.
Choose the mounting arrangement around the structure
of the room, not simply the worktop width.
Main lifting frames
Three catalogue bands cover worktops up to 2400mm
Both wall-mounted 6300LA and floor-mounted 6310LA are listed in three width bands. The required finished width is then specified within the appropriate product.
Compact runs
For shorter preparation areas, dedicated cooking zones and more compact adjustable worktops.
Medium runs
A broad working range for more substantial cooking and preparation areas.
Long single frames
The largest main Baselift width band before a Plusmodule becomes relevant for still longer runs.
Need a moving worktop longer than 2400mm? That is where the Plusmodule system becomes particularly useful, extending the adjustable run beyond the normal single-frame length.
Extend the adjustable surface
A Plusmodule makes the moving worktop longer
A Plusmodule is an additional Baselift section designed to work with a compatible main lift. It allows a longer worktop run to move as one coordinated height-adjustable surface.
On straight 6300LA and 6310LA installations, Plusmodules are particularly useful where the required adjustable worktop exceeds 2400mm.
They can also help with space planning because the division between the main lift and extension allows the supporting motors to be positioned around some wall obstructions.
Left-hand extension
Conceptual arrangement only — not to scale
LEFT PLUSMODULE
MAIN BASELIFT
Right-hand extension
Conceptual arrangement only — not to scale
MAIN BASELIFT
RIGHT PLUSMODULE
A Plusmodule becomes part of the moving worktop system
rather than acting as a fixed continuation.
Decoding the Plusmodule numbers
Mounting method first. Then left or right.
The four LA Plusmodule families mirror the two main Baselift mounting methods and then divide into left- and right-hand extensions.
Left-hand Plusmodule for compatible wall-mounted Baselift LA installations.
Right-hand Plusmodule for compatible wall-mounted Baselift LA installations.
Left-hand Plusmodule for compatible floor-mounted Baselift LA installations.
Right-hand Plusmodule for compatible floor-mounted Baselift LA installations.
400–1000mm
Compact Plusmodule
1001–1800mm
Medium Plusmodule
1801–2400mm
Long Plusmodule
Core Baselift LA specification
Built around a predictable working envelope
The main 6300LA and 6310LA systems share the same fundamental height adjustment, front profile and lifting performance.
Adjustment
Stepless electric travel.
Frame height
Excluding the worktop.
Movement
Powered vertical speed.
Lifting force
Maximum distributed load.
Front
Slimline LA configuration.
Electrical
Mains-powered system.
Before ordering
Six things to resolve before the worktop is manufactured
Baselift dimensions interact with the worktop, adjoining furniture, hob and structure of the room. Resolve these together rather than specifying the frame in isolation.
Choose wall or floor mounting
Confirm whether the structure suits a wall-mounted 6300LA or floor-mounted 6310LA.
Confirm the exact width
Select the correct catalogue band and establish the final worktop-lift width.
Position the hob
Coordinate the appliance cut-out with the lift frame, electrical services and supporting worktop.
Allow movement clearances
Maintain appropriate clearance from adjoining fixed worktops, walls and other obstructions.
Plan controls and safety
Determine the operating position and whether additional side protection or access control is needed.
Decide whether to extend it
Longer adjustable worktop runs should be planned as a coordinated main Baselift and Plusmodule system.
Safety around a moving worktop
Protect the edges and what sits underneath them
Front safety strip
The standard front safety strip stops downward
movement if it encounters an obstruction.
Side-edge protection
Additional side protection may be appropriate
where moving edges sit close to fixed furniture.
Hob protection
The underside of the cooking area and appliance
should be considered as part of the complete
moving-worktop specification.
Continue exploring
Understand the worktop system before you specify it
What Is a Worktop Lift?
Understand how adjustable worktops support seated and standing users, and how worktops, hobs and sinks affect the type of lifting frame required.
Read the worktop-lift guide →What Is an Electric Worktop Lift?
Explore powered worktop adjustment, the difference between LA and HA configurations and how electric systems adapt to different kitchen layouts.
Read the electric worktop guide →Height Adjustable Worktops
Compare straight, corner, electric and manual worktop lifting systems across the wider range.
Compare worktop lifts →
Made by Granberg
Accessible kitchen engineering from Sweden
Baselift forms part of Granberg's wider accessible kitchen range, including worktop lifts, kitchen islands, wall-cabinet lifts, specialist sinks and supporting safety and control components.
Explore Granberg →Worktop design & specification support
Need help building the right Baselift LA configuration?
Tell us the required worktop width, mounting conditions, worktop material, hob position and whether the run needs a Plusmodule. We can help identify the appropriate lift configuration before the worktop is manufactured.
-
Granberg Baselift 6300LA, Wall, 40mm Front, ADJ Worktop Lift - 590-1000mmProduct Code: 6300LA-059100Email for Price
Made to order
2-3 weeks
-
Granberg Baselift 6310LA, Floor, 40mm Front, ADJ Worktop Lift - 590-1000mmProduct Code: 6310LA-059100Email for PriceMade to order
2-3 weeks
-
Granberg Baselift 6300LA, Wall, 40mm Front, ADJ Worktop Lift - 1001-1800mmProduct Code: 6300LA-109180Email for PriceMade to order
2-3 weeks
-
Granberg Baselift 6310LA, Floor, 40mm Front, ADJ Worktop Lift - 1001-1800mmProduct Code: 6310LA-109180Email for PriceMade to order
2-3 weeks
-
Granberg Baselift 6300LA, Wall, 40mm Front, ADJ Worktop Lift - 1801-2400mmProduct Code: 6300LA-189240Email for PriceMade to order
2-3 weeks
-
Granberg Baselift 6310LA, Floor, 40mm Front, ADJ Worktop Lift - 1801-2400mmProduct Code: 6310LA-189240Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6305LA, Wall, 40mm Front, ADJ Worktop Lift Extension - 400-1000mmProduct Code: 6305LA-040100Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Right 6306LA, Wall, 40mm Front, ADJ Worktop Lift Extension - 400-1000mmProduct Code: 6306LA-040100Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6315LA, Floor, 40mm Front, ADJ Worktop Lift Extension - 400-1000mmProduct Code: 6315LA-040100Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Right 6316LA, Floor, 40mm Front, ADJ Worktop Lift Extension - 400-1000mmProduct Code: 6316LA-040100Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6305LA, Wall, 40mm Front, ADJ Worktop Lift Extension - 1001-1800mmProduct Code: 6305LA-110180Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Right 6306LA, Wall, 40mm Front, ADJ Worktop Lift Extension - 1001-1800mmProduct Code: 6306LA-110180Email for PriceMade to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6315LA, Floor, 40mm Front, ADJ Worktop Lift Extension - 1001-1800mmProduct Code: 6315LA-110180Email for PriceMade to order
2-3 weeks
-
Made to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6305LA, Wall, 40mm Front, ADJ Worktop Lift Extension - 1801-2400mmProduct Code: 6305LA-190240Email for PriceMade to order
2-3 weeks
-
Made to order
2-3 weeks
-
Granberg Baselift Plusmodule Left 6315LA, Floor, 40mm Front, ADJ Worktop Lift Extension - 1801-2400mmProduct Code: 6315LA-190240Email for PriceMade to order
2-3 weeks
-
Made to order
2-3 weeks
