Purus Line Living 600 mm Linear Drain, Tiled Floor, Stainless Steel Twist Grid & Frame - Outlet Choice

Purus Line Living 600 mm linear drain with a stainless steel Twist grid and frame, designed for wetrooms with tiled flooring.

Suitable for installation into concrete / screed floors and timber floors. The stainless steel Twist grid is height adjustable to suit the finished tile level.

Also available as a complete kit with the Maxxus Linear floor former and tanking system for tiled floors (Product Code: 68219-xx).

For installation with a Maxxus Linear floor former (Product Code: M-LIN), select the optional fitting kit below and order the required floor former and tanking system separately.

Key benefits:

• 600 mm nominal length linear drain
• 630 mm overall channel length
• PP-bodied channel unit
• Removable sprung NOOD water trap
• NOOD no-odour water trap helps prevent foul air escaping even if the trap dries out
• Removable stainless steel Twist grid and frame
• Grid height can be adjusted to suit the finished tile level
• Includes tanking collar
• Requires a suitable wetroom tanking system before installation of the tiled floor finish - available separately
• Includes 2 x support legs for concrete / screed floor installation
• Includes joist installation kit for timber floors
• Optional fitting kit available for Maxxus Linear floor formers
• Choice of three NOOD waste outlet configurations

Technical details:

• Nominal drain length: 600 mm
• Overall channel length: 630 mm
• Overall width: 133 mm
• Grid length: 559 mm
• Grid width: 60 mm
• Grid thickness: 8.5 mm
• Grid loading: Class K3, maximum 300 kg
• Grid and frame material: Stainless steel
• Grid design: Twist
• Minimum / maximum tile thickness including adhesive: 10-26 mm

Waste options:

• Choice of three NOOD water trap outlets, each supplied with a push-fit ABS pipe reducer from 2" to 1½" (50 mm to 40 mm)

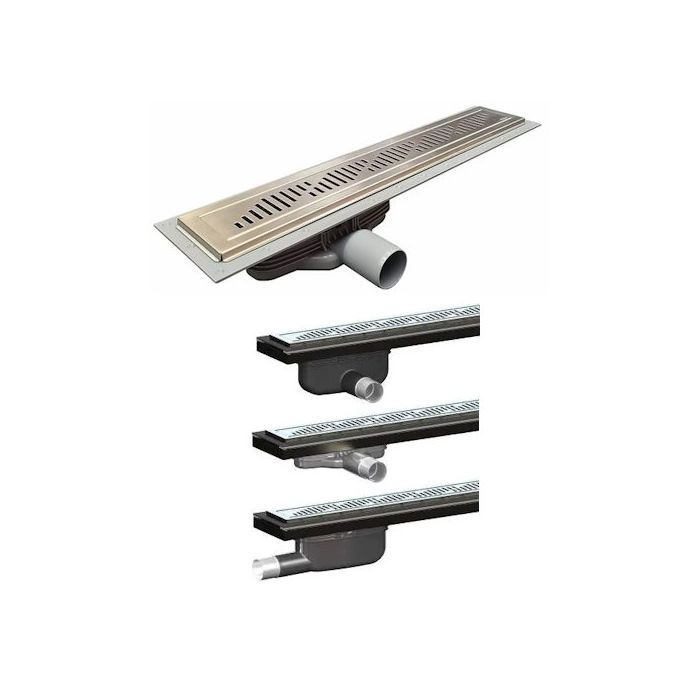

• Product Code 52742: Low Side Outlet - flow rate 30-36 litres/min - outlet depth / overall depth: 52 / 94 mm
• Product Code 52740: Side Outlet - flow rate 60-72 litres/min - outlet depth / overall depth: 105 / 137 mm
• Product Code 52741: End Parallel Outlet - flow rate 60-72 litres/min - outlet depth / overall depth: 105 / 141 mm
• Please select the required outlet configuration

Installation guidance:

• The minimum floor gradient should be 1:150 to ensure water flows towards the drain
• The gradient should generally be no steeper than 1:50 to help reduce the risk of slipping
• A nominal fall of approximately 2% is commonly used
• Do not install the drain on a raised platform; it is designed to be installed level with the surrounding finished floor
• A suitable wetroom tanking system is required to waterproof the floor and surrounding areas before tiling - not included
• Install the tiled finish using a suitable C2 tile adhesive and compatible grout
• Minimum / maximum tile thickness including adhesive: 10-26 mm
• Refer to the PDF installation instructions for full fitting guidance

Concrete / screed floor installation:

• Create suitable falls within the screed so water drains towards the channel
• Supplied with 2 x plastic support legs for setting the drain height and level before casting the concrete or screed
• Support legs provide an adjustable height from approximately 88-195 mm
• Refer to the PDF installation instructions for full installation details

Timber floor installation:

• Check that the joists and surrounding floor structure are flat, level, sound and secure before installation
• Install suitable noggins or structural supports around the linear drain and floor former where required
• Includes a joist installation kit for timber floor applications
• Refer to the PDF installation instructions for full installation details

Maxxus floor former installation:

• Select the optional fitting kit for installation with a Maxxus Linear floor former
• Order the required Maxxus Linear floor former separately (Product Code: M-LIN)
• A compatible wetroom tanking system is also required and should be ordered separately

Warranty:

• The Purus Line Living has a design life of 25 years when installed, used and maintained in accordance with the manufacturer's instructions and used with normal shower water

Manufacturer product codes:

• 52742, 52740, 52741
