Signal White
RAL 9003 motor covers with natural anodised aluminium arms and a chrome-plated clothes rail.
730-160-01Granberg BUTLER 730 - Electric Fold Down Wardrobe Rail
Electric Fold Down Wardrobe Rails
Granberg BUTLER 730
Powered wardrobe access for conventional-height installations. BUTLER 730 moves hanging clothes forwards and down at the touch of a button, bringing the rail into a more comfortable reach position without permanently sacrificing the storage space below.
30kg rail capacity704mm downward travel600–1600mm wardrobesBluetooth control included
Straight-arm powered access for everyday wardrobe heights
Bring the rail to the user
Keep hanging storage high. Access it low.
A conventional fixed clothes rail assumes the user can comfortably reach into the upper part of the wardrobe. BUTLER 730 changes that relationship by moving the loaded rail out of the cabinet and down towards the user.
Because the clothes return to their higher stored position afterwards, the lower wardrobe zone can still be used for shelves, baskets, shoes or other storage rather than being permanently occupied by a low hanging rail.
The current 730 is designed around standard wardrobe installation heights and uses straight arms for a compact movement path.
545–1568mmTelescopic internal wardrobe width range
47mm/secPowered movement speed
30kgMaximum distributed clothes-rail load
52dBPublished operating noise level
The movement is the point
Forwards first, then down into reach
BUTLER 730 does more than lower vertically. Its straight-arm geometry carries the clothes rail out from the wardrobe and down towards the user, so garments can be seen and reached without leaning deep into the cabinet.
↓out + down
Concept only: always use Granberg's current dimensional drawing when planning the wardrobe and movement clearances.
BUTLER 730 movement
Standard-height access with a substantial reach change
The current product specification gives 704mm downward movement and 591mm outward movement. The rail is steplessly adjustable, so it can be stopped at the user's preferred height rather than operating only between two fixed positions.
704mmDownward movement
591mmOutward movement
230VPlug-in electrical connection
Safety stopMovement halts if an obstruction is encountered
Three coordinated finishes
Choose the mechanism to sit quietly within the wardrobe
BUTLER 730 is available in three standard finish combinations, allowing the motor covers and arms to coordinate with light, dark or neutral cabinetry.
Umber Grey
RAL 7022 motor covers with black anodised aluminium arms and a chrome-plated clothes rail.
730-160-06Jet Black
RAL 9005 motor covers with black anodised aluminium arms and a chrome-plated clothes rail.
730-160-10Powered independent access
Simple local control, with remote options when useful
The current BUTLER generation is supplied with a Bluetooth control button. Optional radio hand controls can extend that control arrangement for one lift or several Granberg lifting systems.
Bluetooth button included
The standard control can be positioned within comfortable reach and fixed using the supplied mounting arrangement.
Single-lift radio remote
An optional handheld remote allows the wardrobe lift to be controlled wirelessly away from the fixed button position.
Multi-system control
Multi-channel Granberg remotes are useful where a dressing area contains more than one powered wardrobe or lifting system.
See the 730 in context
A compact mechanism that changes how the whole wardrobe can be planned
Use these images to show the stored position, lowered position and the space that remains available around the moving rail.

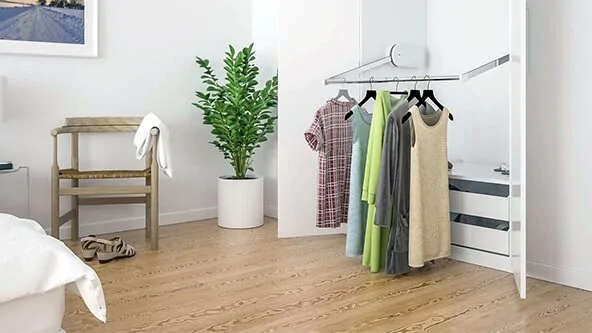

Stored high
Moves out and down
Lower storage remains usefulWatch the current generation
See the movement — then see how it is installed
The operating video is useful for understanding the reach change. The installation video is aimed at the practical fitting and setup of the current BUTLER generation.
BUTLER 730 in motion
Watch the rail travel forwards and down from its stored position to a more accessible working height.
Installation overview
For installers and specifiers: see the current mounting arrangement, components and commissioning sequence. Always follow the latest Granberg instructions supplied for the exact product.
BUTLER 730 or BUTLER 732?
Choose according to how high the clothes need to be stored
Both systems offer 30kg powered wardrobe access across the same broad wardrobe-width range. The major difference is the movement geometry and the height of storage each system is designed to unlock.
BUTLER 730
The standard-height solution. Straight arms suit conventional wardrobe positions while still moving the rail substantially forwards and down.
Downward travel704mm
Outward travel591mm
Best fitStandard-height wardrobes
BUTLER 732
Curved arms and much longer movement are designed to bring genuinely high-level clothes storage into reach while keeping the lower wardrobe available.
Downward travel1118mm
Outward travel762mm
Extra optionCustom colour
Before the wardrobe is built
Plan the complete movement zone, not just the rail width
A powered clothes rail needs suitable wardrobe structure, power and clear space throughout the full path of the mechanism and the hanging garments.
Measure the internal width
The telescopic mechanism fits internal wardrobe widths of approximately 545–1568mm, corresponding to nominal 600–1600mm wardrobes.
Map the movement path
Doors, shelves, handles and neighbouring furniture must stay clear as both the mechanism and the clothes move forwards and down.
Allow for the clothes
Plan the cabinet depth and surrounding space around the garments themselves, not only the metal mechanism.
Provide power
The current system uses a plug connection for 230V, 50/60Hz supply. Plan the socket location before the wardrobe is completed.
Position the control
Place the Bluetooth button where the intended user can operate it comfortably from their normal seated or standing position.
Use the space below carefully
Lower shelves, baskets and footwear storage can remain useful, but they must not obstruct the lowered clothes or the moving arms.
Try the movement at Bellamy House
The showroom demonstrates the previous BUTLER 720 generation
Our Wardrobe Area contains the superseded BUTLER 720 rather than the current 730. It is still useful for experiencing the standard-height powered wardrobe concept, comparing reach and understanding how hanging clothes move towards the user.
Made by Granberg
Swedish lifting-system engineering beyond the kitchen
BUTLER applies the same Granberg principle used across its accessible kitchen and storage systems: move the storage to the user rather than expecting the user to adapt to a fixed height.
Explore Granberg →Wardrobe specification support
Need help deciding whether BUTLER 730 fits the wardrobe?
Send us the internal wardrobe width, intended rail height, available depth, lower-storage layout and the user's preferred reach position. We can help check whether the 730 movement suits the space or whether the longer-travel 732 would be a better fit.
Granberg BUTLER 730 - Electric Fold Down Wardrobe Rail
-
Granberg BUTLER 730 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Signal White Motor Covers & Natural ArmsProduct Code: 730-160-01£2,458.80 £2,049.00 Exc. VAT
Available to order
7-10 working days
-
Granberg BUTLER 730 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Umber Grey Motor Covers & Black ArmsProduct Code: 730-160-06£2,458.80 £2,049.00 Exc. VATAvailable to order
7-10 working days
-
Granberg BUTLER 730 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Jet Black Motor Covers & Black ArmsProduct Code: 730-160-10£2,458.80 £2,049.00 Exc. VATAvailable to order
7-10 working days
-
Available to order
7-10 working days
-
Available to order
7-10 working days
-
Granberg Radio Remote Hand Control, Black, 2–5 Lifting SystemsProduct Code: 6138x-10Email for QuoteAvailable to order
7-10 working days
