Purus Line Living Plus 700mm Linear Drain, Vinyl Floor, Stainless Steel Chess Design Grid - Outlet Choice

Purus 730mm Living Plus linear channel drain, with a Stainless Steel Chess design grid for wet rooms with vinyl sheet flooring with a maximum thickness of 3mm.

Designed for use with concrete / screed floors and timber floors.

Key benefits:

• 730mm length linear channel drain
• PP - bodied unit
• Removable sprung NOOD water trap
• The NOOD no-odour water trap which will not allow any foul air to escape even if the gully dries out
• Removable stainless steel channel grid - Chess design
• The grid when installed will be flush with the vinyl sheet flooring, due to the new clamping ring technology
• For vinyl sheet floor finishes, that should be secured in the gully clamping frame
• Includes 2 x support legs for screed floors

Technical details:

• Overall length (mm): 730
• Overall width (mm): 130
• Grid length (mm): 688
• Grid width (mm): 88
• Depth of channel (mm): 21, (plus depth of gully outlet - see below)
• Grid loading: Class K 3 (300 kg)
• Maximum vinyl sheet flooring thickness (mm) 3

Waste options:

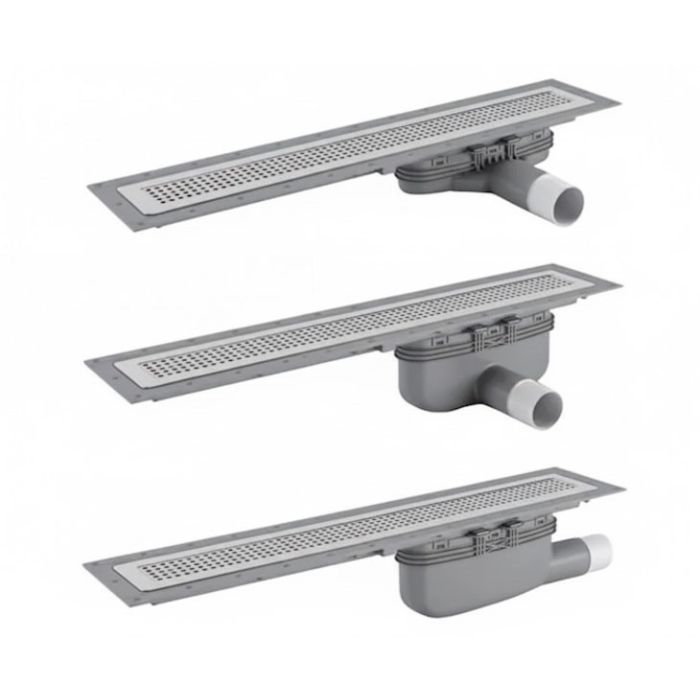

• Choice of three NOOD water trap outlets each with a push-fit ABS pipe reducer 2” to 1½” (50mm to 40mm):
• Product Code: 53310 - Low Side Outlet with 30-36 Ltr/min flow rate - Waste depth / Overall (mm): 52 / 73
• Product Code: 53309 - Side Outlet with 60-72 Ltr/min flow rate - Waste depth / Overall (mm): 105 / 126
• Product Code: 53311 - Side Side (End Parallel) Outlet with 60-72 Ltr/min flow rate - Waste depth / Overall (mm): 105 / 126
• Please select as desired

Installation Guidance:

• The minimum gradient should be 1:150 to ensure the flow of water to the floor trap and no more than 1:50 to reduce the risk of slipping
• A nominal 2% falls is usually used
• Do not install the product on a raised platform. It is designed only to be installed level with the surrounding floor

Concrete / Screed Floor Installation:

• Build falls to the gully with screed so water can run into it
• Supplied with 2 x plastic concrete supports, for setting the gulley height and level prior to casting the concrete screed
• The Concrete supports have a min. height of 88mm and a max height of 195mm with a distance case at 50mm
• Refer to the PDF download installation instructions for more information

Timber Floor Installation:

• Check the level of the joists and floorboards prior to installation of the former and marine ply. They must be flat and level
• The joists and floor must be made sound and secure according to BS 5268 and for BS 6178 if using joist hangers
• Use appropriate marine ply boards in accordance with BS 8203:2017 for vinyl sheet flooring
• Noggins or structural supports need to be added to the joists. These are required to add extra support for the tray and the channel around its perimeter
• Refer to the PDF download installation instructions for more information

Warranty:

• The design life of the Purusline Living Plus is 25 years, as long as they are installed and used following the installation and maintenance instructions and only in use with normal shower water.

Manufacturer product codes:

• 53310, 53309, 53311
