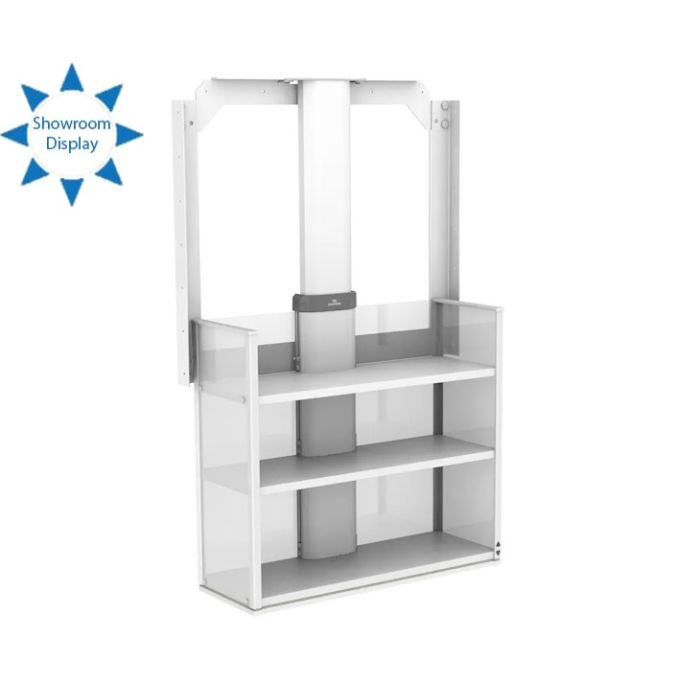

Granberg Wall Cabinet Lift Verti 840KA, 26.2 cm Depth, CAB W 40-100 cm x 70-84 cm H - White

The Granberg Verti 840KA is a height adjustable wall cabinet lift for the kitchen, finished in white. For wall cabinets 700-840mm in height.

Fitted inside the cabinet, the lift lowers the cabinet shelves and contents by 485mm in a vertical motion to the worktop below.

This version of the Verti is suitable for cabinets with 267-311mm internal depth and comes with a choice of controls and optional factory fitted LED spotlights.

Key benefits:

• Electric height adjustable wall cabinet lift
• Lowers the cabinet's shelves and contents in a vertical motion to the worktop below
• Quiet motors and discreet styling
• Integrated safety feature prevents the movement of the lift in the event of an obstruction

Choice of controls:

• Recessed - Corded Control Button in ALU-design, with 5m Control Cable (Product Code: 61310)
• Recessed - Corded Mini Control Buttons, with 5m Control Cable (Product Code: 61315)
• Recessed - Wireless Mini Control Buttons (Product Code: 61376)
• Recessed - Wireless Control Button in ALU-design (Product Code: 61371)
• Surface mounting - Wireless Control Button in ALU-design with Extension Frame (Product Code: 61371 + 61355)
• Single Channel Remote Control (Product Code: 61385-10)
• Multi-channel remote controls are also available if you are installing multiple systems, contact us to discuss your requirements

Integrated safety system:

• Each lift is supplied fitted with a safety stop panel located below the bottom shelf

Optional lighting:

• Factory fitted LED spotlights x 2, located below the safety stop plate
• LED strip lights are also available, with matching LED lights for fixed height cabinets - available separately (Product Codes: 61932 and 61931)

Wall cabinet requirements:

• Internal widths (mm): 306, 406, 506, 606, 706, 806 and 906
• Suits cabinet heights (mm): 700-840
• Lift actual height (mm): 680
• Wall cabinets over 700mm in height may require an internal fixed shelf above the lift
• Internal depth (mm): 267 - 311
• Side thickness (mm): 16 - 20

Technical details:

• Colour: White
• Width of shelves (mm): 306, 406, 506, 606, 706, 806 and 906
• Depth of shelves (mm): 240mm
• Unit height (mm): 680
• Gap from wall for tiling space (mm): 22
• Vertical adjustment, max. 485mm
• Speed level: 41mm / sec.
• Bottom safety stop: White finished MDF panel with micro-switches located beneath lowest shelf. When the panel is touched the lift stops
• Electrical connection: Mains plug for 230 V, max 0.5A
• Power consumption: Max 5A (1150 W)
• IP-class: IP 20
• Note: The Wireless and Remote-Control options require an additional plug socket for the remote receiver
• The plug sockets for the Verti should be located 50mm above the wall unit
• Control Voltage: 5 V
• Lighting Voltage: 24 V
• Weight including shelves, max. size: 28kg
• Max. Load in a cabinet / Lifting force: 60kg
• Noise pressure: Less than 70 dB(A)

Materials:

• Shelves: (19mm) White melamine
• Safety plate: 12mm MDF
• Sides: Crylone Softone
• Metal Parts: Powder-lacquered (White RAL 9003)
• Sliding rail: Aluminium

Warranty:

• 5-year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Manufacturer product codes:

• 840KA-040, 840KA-050, 840KA-060, 840KA-070, 840KA-080, 840KA-090, 840KA-100

Please note:

• For the installation of the Verti 840 lifting system, you must remove the shelves and base of the wall cabinet.
• Please note, the Verti-840KA is not compatible with an “In-frame” wall cabinet. There is a pinch / entrapment risk with the front frame.
