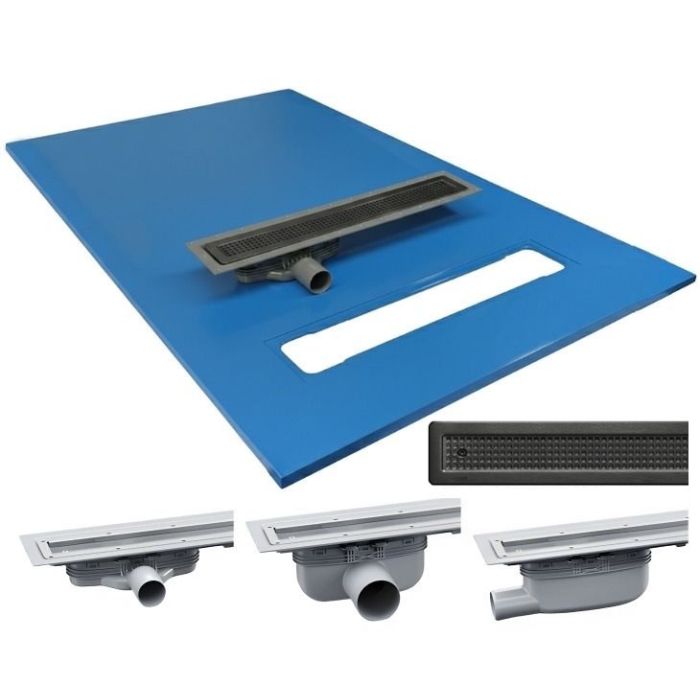

Maxxus Linear Former with Purusline Living Vinyl Plus – PVD Black Chess Design Grate | Multiple Sizes & Outlet Options

Maxxus linear shower deck with a Purusline Living Vinyl Plus linear drain for vinyl sheet floors. The PVD Black Chess design grate fits flush with the finished vinyl floor covering.

Available in a range of sizes, the Purus gully outlet can be either side, low side or end parallel (side side).

Key benefits:

• For vinyl sheet flooring only
• Suitable for timber and concrete floors
• Strong and durable base yet only 22 or 24mm thick - refer to plan drawings for information
• Vacuum formed GRP
• Made from 50% recycled materials and is 100% recyclable
• Solid right through - no pockets or hollow cavities
• Creates a level access floor with no step
• Built in gradients for water removal to the waste
• Accepts 470kg (75 stone) loading over 400mm joist centres
• Self-supporting - no requirement for additional support underneath
• May be trimmed down to any size
• Removable sprung NOOD water trap
• The NOOD no-odour water trap which will not allow any foul air to escape even if the gully dries out
• Flush fitting removable Black Chess design grate
• Choice of size

Installation:

• Fast 1 hour install - laid straight on joists no under boarding needed
• Totally flat underside and recessed screw holes allow for easy fixing
• No release agent to inhibit bonding of vinyl floor adhesives

Includes Purusline Living Vinyl Plus Linear drain with three outlets types with Purus NOOD traps:

• 600mm or 800mm lengths depending on the floor former size
• Plastic-bodied unit
• Choice of three gully outlets each with a ABS pipe reducer 2” to 1½” (50mm to 40mm):
• - Low Side Outlet with 30-36 ltr/min flow rate - depth (mm): 52
• - End Parallel Outlet with 60-72 ltr/min flow rate - depth (mm): 105
• - Side Outlet with 60-72 ltr/min flow rate - depth (mm): 105
• Please select, as required
• Note: Download the correct PDF installation instructions, based on the linear drain length

Warranty:

• Maxxus floor formers come with a 25 year manufacturer guarantee

Manufacturer product codes:

• MV988, MV983, MV984, MV987, MV985, MV989, MV981, MV986, MV982
• Former Product codes: 6821988/V, 6821989/V, 6821987/V, 6821985/V, 6821986/V
