Maxxus Wetroom Kit for Tiled Floors – Tray, Drain & Tanking - Multiple Sizes & Grids
Maxxus wet room floor former deck. For tiled floors. Choice of size. Can be cut down to size. Self-supporting, requires no additional support underneath, 470kg loading over 400mm joist centres. Includes choice of Purus Two-part drain with NOOD no-odour trap, paint on liquid membrane that covers 8 to 10m² and tanking kit and Chess Design grid or upgrade to one of the luxury stainless steel PVD coated grids in a choice of colours: Brushed Brass, Copper, Bronze, or Black.
The Maxxus is a strong 22mm thick wet room floor former tray suitable for wooden and concrete floors.
With an offset waste and totally flat underside, the Maxxus is easy to install and is incredibly strong.
The deck is supplied with the Purus 2-part Minimax horizontal outlet waste, 10m² liquid tanking kit, stainless steel chess grid or upgrade to one of the luxury PVD coated coloured girds.
Key benefits:
- For tiled flooring
- Suitable for timber and concrete floors
- Strong and durable base yet only 22mm thick
- Vacuum formed GRP
- Made from 50% recycled materials and is 100% recyclable
- Solid right through - no pockets or hollow cavities
- Creates a level access floor with no step
- Built in gradients for water removal to the waste
- Accepts 470kg (75 stone) loading over 400mm joist centres
- Self-supporting - no requirement for additional support underneath
- May be trimmed down to any size
- The Minimax waste projects only 80mm below Maxxus deck
- Gravity or Pumped - Purus Minimax Two-part waste with 47 Litres/minute flow rate
- Removable sprung NOOD water trap
- The NOOD no-odour water trap which will not allow any foul air to escape even if the gully dries out
- Removable stainless-steel Tile Insert tray or Grid options
- Suitable for underfloor heating
- Choice of size
Installation:
- Totally flat underside and recessed screw holes allow for easy fixing
- Simply rotate to place the drain hole in the ideal position
- Easy to use paint on system
- Ready to use, no mixing required
- Dries into a flexible sheet membrane

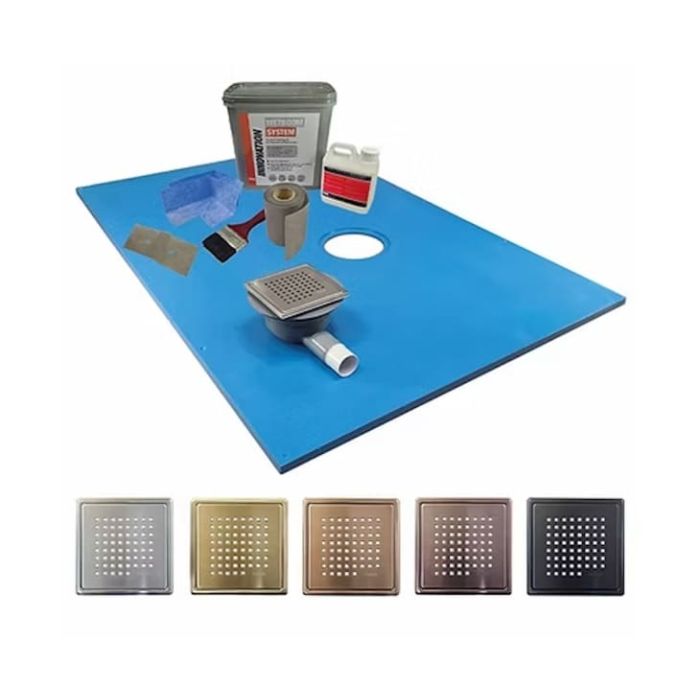

Kit contents:
- 1x Maxxus floor former
- 1x Standard Purus stainless steel square grid (see options below)
- 1x Purus Minimax 2-part horizontal wet floor waste Gulley with NOOD (no-odour) water trap (Product Code: 52719)
- 1x Pipe reducer for the waste outlet, 2" to 1½" (50mm to 40mm)
- 1x 9kg paint on tanking system, covers 8 to 10m² in two coats
- 1x Chess design grid with grid adapter, 154 x 154 mm – Stainless Steel (Product Code: 53385)
- 1x 1 litre primer for porous surfaces
- 1x 10m tape for wall/floor joint and other gaps
- 2x Internal corners
- 2x Pipe collars
- 1x 75mm brush
Luxury PVD coated, Chess design grid upgrade:
- - Purus PVD Chess Design grid with grid adapter 155 x 155 x6 mm – Brushed Brass colour
- - Purus PVD Chess Design grid with grid adapter 155 x 155 x6 mm – Copper colour
- - Purus PVD Chess Design grid with grid adapter 155 x 155 x6 mm – Bronze colour
- - Purus PVD Chess Design grid with grid adapter 155 x 155 x6 mm – Black colour
- 25 year manufacturer guarantee
- ML934, ML930, ML931, ML941, ML929, ML936, ML932, ML935, ML1411, ML933, ML942, ML1808
PVD (Physical Vapour Deposition) is Titanium Ion Plating which improves the performance of stainless steel by increasing wear, scratch and corrosion resistance making its durability far superior to conventional coating methods such as electroplating or powder-coating.
Warranty:
Manufacturer product codes:
| Manufacturer | Maxxus |
|---|---|
| Brand / Model | Maxxus |
| Size (mm) | 900x900, 1000x1000, 1135x770, 1200x800, 1200x900, 1200x1200, 1300x800, 1400x900, 1450x1150, 1500x800, 1650x900, 1800x800 |
| Floor Former Thickness (mm) | 22 |
| Waste Option / Floor Finish | Purus Minimax 2-part Gravity / Pumped - Vinyl |
| Floor Finish | Tiled Flooring |
| Optional Waste Type | Gravity Waste, Pumped Waste |
| Flow Rate / l/min | 47 |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
