Royde & Tucker Double Action Pivot Door Set, 120kg Floor Mounted Lower Pivot Bracket - Satin SS
Heavy duty Pivot door hinge set for internal doors. Satin Stainless steel. British made. Includes floor mounted bottom pivot, top centre door bracket. Allows 120kg x 1100mm doors to swing in either direction. Suitable for single and double FD30 and FD60 fire doors.
This pivot hinge set from Royde & Tucker allows doors to swing in either direction.
Constructed from stainless steel, the sets are British made to ensure quality.
Key benefits:
- Allows doors to swing in either direction
- Door plates radii R12.5 for easier preparation
- Floor mounting lower pivot
- Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
- Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
- Maintenance free - 25 year manufacturer guarantee
- Grade 304 stainless steel
- Satin finish
Technical details:
- Minimum door thickness 44mm
- To suit internal doors weighing up to 120kg
- Maximum door width 1100mm
- For 44mm non-Fire Rated doors an R9 radius is required on the pivot edge with a 4mm door and frame gap
- For 44mm thick Fire doors an R15 radius is required on the pivot edge as only a 3mm gap is permitted between the door and frame
- For 54mm thick Fire doors an R20 radius is required on the pivot edge as only a 3.5mm gap is permitted between the door and frame

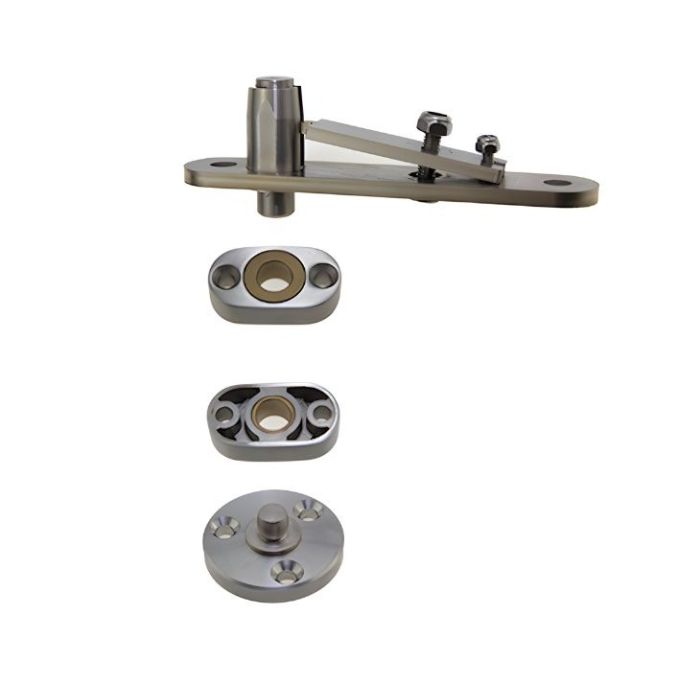

Parts supplied:
- 2x Door plates
- 1x Top frame bracket
- 1x Bottom floor pivot bracket - 30mm dia.
- 6x 1-1/4" x No. 10 Woodscrews
- 3x 1-1/4" x No. 12 Woodscrews
- 1x Allen Key for top frame bracket adjustment
- Installation Instructions
Warranty:
- 25-year manufacturer warranty
Recommended accessories:
- Emergency release door stop - prevents pivot swing except in cases of emergency
- Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
| Manufacturer | Royde & Tucker |
|---|---|
| Max. Load (kg) | 120 |
| Suitable For FD30 / FD60 Fire Doors | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
