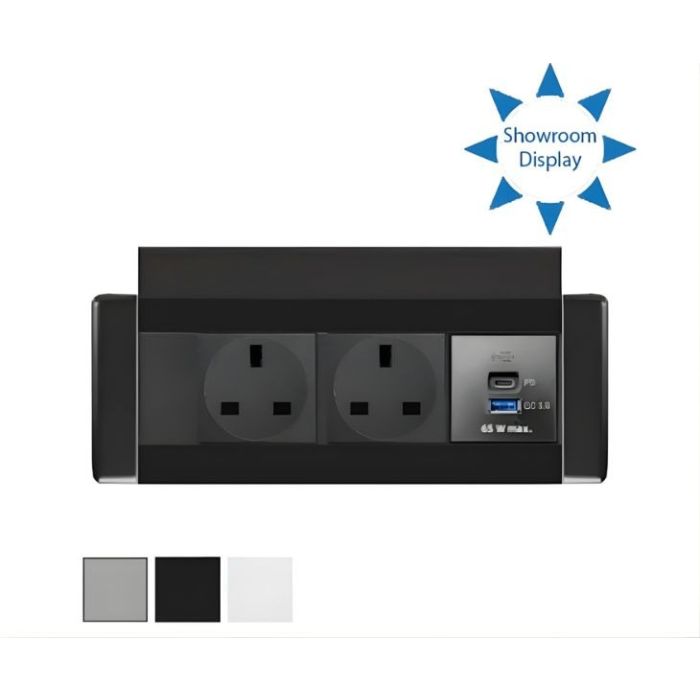

EVOline FrameDock Hide - Choice of Colour w/ Double Socket & USB A + C

EVOline FrameDock Hide, choice of colour. A timeless design for all work areas, the cover panel protects the strip from dust and dirt. Low installation depth of 51mm and a simple mounting method allows for the EVOline FrameDock to fit almost anywhere.

Key benefits:

• Timeless design
• Easy to install
• Can be covered or uncovered when not in use
• Cover protects the power strip from dust and dirt
• Perfect solution for flush mounted sockets
• interchangeable modules for data/multimedia only

Technical Details:

• Choice of colour - Please see image gallery for the range of colour combinations and materials
• Installation depth dia. (mm): 51
• 2 Sockets
• USB A
• USB C
• Cut-out width (mm): 71
• Cut-out length (mm): 205
• Nominal Current V AC: 230
• Nominal Current A: 5
• Input power W Max: 1150
• Protection rating: IP 20

Supplied Parts:

• 3m supply cable & 13A UK Plug
• Double USBCH - Type A Quick Charge 3.0 – 5V/3A (15W); 9V/2A (18W); 12V/1.5A (18W)
• Type C Power Delivery – 5V/3A (15W); 9V/3A (27W); 12V/3A (36W); 15V/3A (45W); 20V/3 25A (65W)

Warranty:

• 1-year warranty

Note

• Please note that you should not pre-cut your cut-out prior to the delivery of the product to ensure a correct fit
