Granberg Centerlift 6490H Height ADJ Kitchen Island - 990-3290mm W x 1106mm D - Anthracite Finish

400mm Height adjustable kitchen island lift. Electric operation. Anthracite RAL 9004 finish. Available in widths 990-3290mm. Frame depth: 1106mm. Includes mini control buttons and fixings for worktop and facia fronts. Range of accessories and hanging cabinets available to complete the lift. Granberg provide a CAD design service to help you visualise and specify this product, with plan, elevation and 3d drawings. Please contact us to discuss your requirement’s.

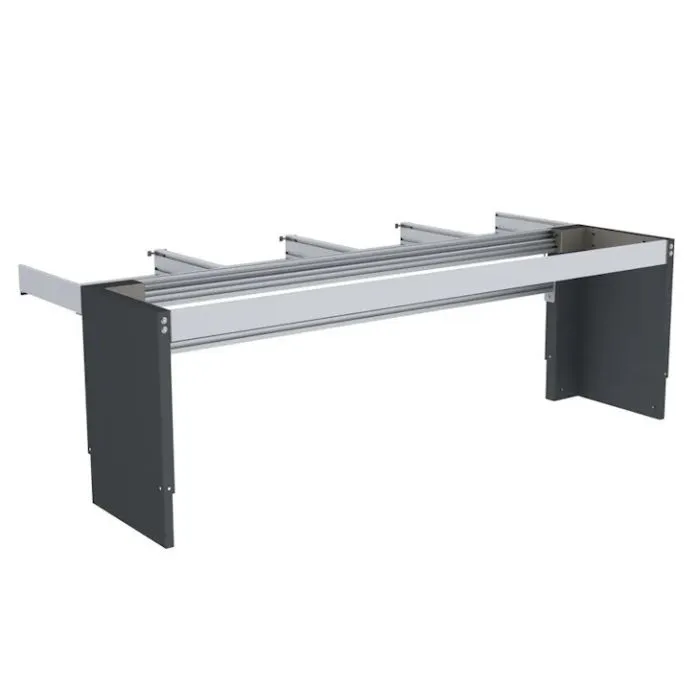

The Granberg Centerlift 6490 is an electric rise and fall kitchen island.

Its clever design features two distinct sides - one side where hanging cabinets can be mounted; and another side which allows for legroom and facia fronts/drawers to be mounted.

This version of the Centerlift 6490 comes in anthracite (RAL 9004) finish and is available in widths between 990-3290mm.

Design service available:

  • Granberg provide a CAD design service to help you visualise and specify this product, with plan, elevation and 3d drawings. Please contact us to discuss your requirement’s.

Key benefits:

  • Height adjustable kitchen island lift
  • Electric operation
  • Simple "plug and play" electronics and motor system
  • One side of the lift allows for hanging cabinets to be mounted
  • The other side of the lift allows for legroom, and can be further embellished with facia fronts and drawers
  • Integrated safety stop - prevents the lift's movement in the event of an obstruction
  • End motor parts in Anthracite RAL 9004 finish
  • Note: When the Granberg Cover Package for Centerlift 6490H - White (Product code: 61515-01) are fitted, this will cover the fixed part of the Anthracite upper section of the motor end

Useful information:

  • Worktop width = lift width + thickness of side cover + desired protrusion
  • Worktop depth = lift depth (1106mm) + thickness of front cover + desired protrusion
  • Cover panels can hide installations under the worktop on the side that allows for legroom

Includes:

  • Factory-mounted aluminium system
  • Floor-mounted motors
  • Mini control buttons
  • Safety switch on the side that allows for legroom
  • Fittings for worktop and facia fronts

Recommended accessories - see PDF downloads for more information:

  • Alu-design buttons
  • Cover package
  • Cover panel
  • Drawers
  • Front
  • Hanging cabinet
  • Hose cover
  • Mini cabinet on wheels
  • Multi-compartment frame
  • Power switch / Power socket
  • Protective panel
  • Safety lock
  • Safety system

Technical details:

  • Height adjustment: Motorised, step-less adjustment of 400mm (between 700-1100mm usable height excluding worktop)
  • Speed: 20mm / sec.
  • Electrical connections: 2x 230V / 50Hz / 10A (5A+5A)
  • Lifting force (kg): 400
  • Max. lifts: 6 per hour
  • IP-class: IP 20
  • Frame depth (mm): 1106
  • Facia front height (mm): 103 (order facia separately)
  • Cover panel dimensions: Width = width of lift, height 510 mm, thickness 12-20 mm (order cover panel separately)
  • Materials: Motor units in lacquered steel (S235JRG2). Aluminium beams. Aluminium frame for the side that allows for legroom

Warranty:

  • 2 year manufacturer warranty

Manufacturer product codes:

  • 6490HA-099-07, 6490HA-109-07, 6490HA-119-07, 6490HA-129-07, 6490HA-139-07, 6490HA-149-07, 6490HA-159-07, 6490HA-169-07, 6490HA-179-07, 6490HA-189-07, 6490HA-199-07, 6490HA-209-07, 6490HA-219-07, 6490HA-229-07, 6490HA-239-07, 6490HA-249-07, 6490HA-259-07, 6490HA-269-07, 6490HA-279-07, 6490HA-289-07, 6490HA-299-07, 6490HA-309-07, 6490HA-319-07, 6490HA-329-07
Technical Information
Manufacturer Granberg
Height Adjustment (mm) 400
Max. Load (kg / St) 400 / 62.9
Model Centerlift 6490HA
Stock status Made to order
Delivery time4-6 weeks
Returns Status Custom Made, non-returnable
