Granberg Manual Height Adjustable Washbasin - BASICLINE 403-11-05 - Incl. Mixer Tap with 150 mm Lever - White

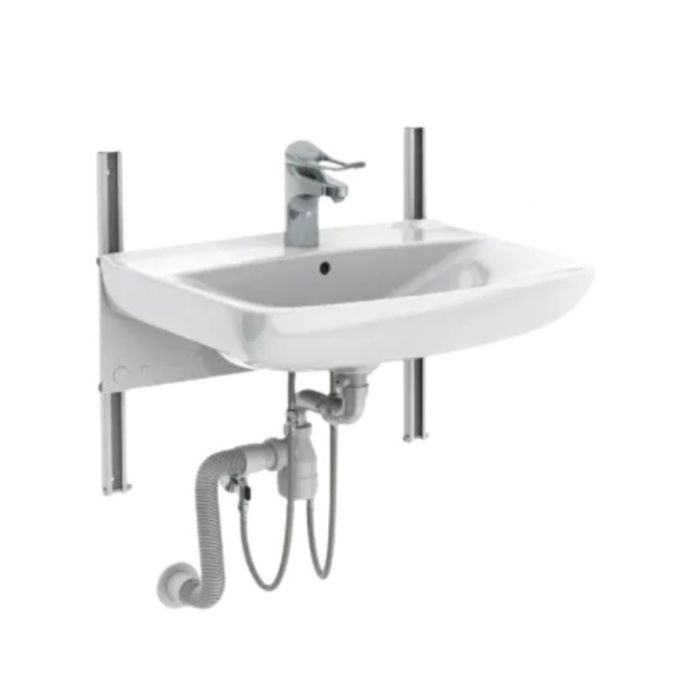

The Granberg Basicline 403 is a wall mounted manual washbasin lift, with a 150 mm lever tap.

Stylish and discreet, the entire system can be manually moved to the required height and locked into place.

This version includes the 425-011 washbasin.

Key benefits:

• Complete height adjustable washbasin system
• Wheelchair accessible washbasin with shallow bowl, generous flat surfaces and easy-to-grip sides
• Manual adjustment using a socket wrench
• Track design gives it step-less 300 mm height adjustment
• Depth of leg room under the washbasin 482 mm
• Free space below the unit for plumbing connections
• Can be installed beneath a mirror or cabinet

Includes:

• Granberg Basicline 403-1 washbasin bracket
• Granberg 425-011 washbasin with overflow and plug
• Granberg 425-331 flexible drain hose with water trap
• Granberg FMM 425-105 mixer tap (Shown in product images), 150 mm lever and PEX hoses

Optional tap upgrades with 2x 500 mm PEX flexible hoses:

• Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)

Please note:The FMM taps are not UK - TMV rated or WRAS approved for commercial applications

• Granberg FMM 425-106 mixer tap, 150mm lever, 1.5m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses

Technical details:

• Total width (mm): 600
• Height of wall bracket (mm): 508
• Depth of wall bracket (mm): 38
• Total depth from front of washbasin to wall (mm): 482
• Width of washbasin (mm): 600
• Depth of washbasin (mm): 445
• Distance from front edge to tap lever (mm): 225
• Height from top of washbasin to floor when mounted at the recommended height (mm): 615-915 (adjustable)
• Max load (kg): 100

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
