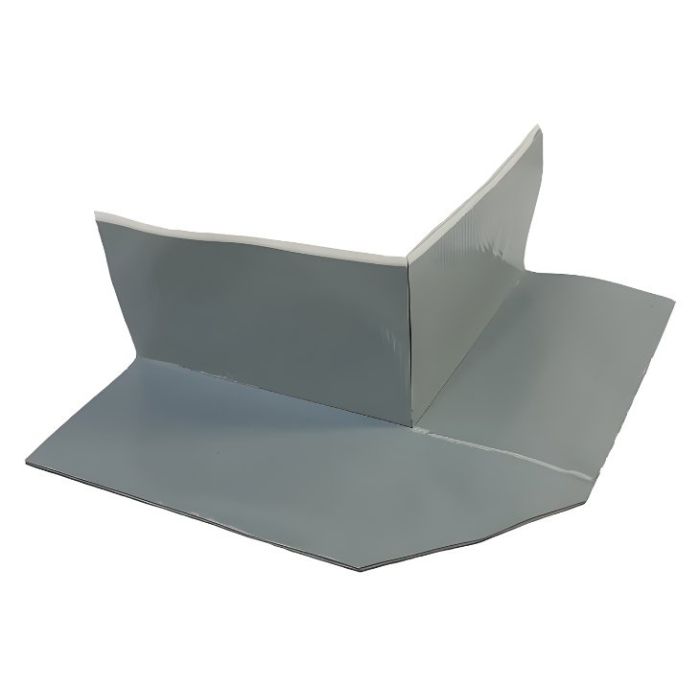

Hydromat Double Sided Self-adhesive Butyl External Corner

Hydromat EasyLap Double-Sided Self-Adhesive Butyl External Corners are designed to create a secure, fully waterproof seal at external junctions within wetroom and bathroom tanking installations.

Forming part of the Hydromat EasyLap tanking system, these preformed external corners are used at exposed edges such as boxed-in pipework, nib walls and external wall returns. The double-sided butyl construction allows the Hydromat membrane (15 m x 550 mm, 7.5 m²) and joint tape to bond securely, ensuring a continuous waterproof barrier at critical junctions.

The flexible butyl material accommodates movement within the structure, helping to prevent cracking or failure at edges. Once installed, the surface can be tiled over immediately, significantly reducing installation time compared to traditional tanking methods.

Key benefits:

• Preformed external corner for wetroom tanking systems
• Double-sided self-adhesive butyl for secure bonding
• Designed for use with Hydromat EasyLap membrane system
• Ensures watertight sealing at external junctions and edges
• Flexible construction to accommodate movement
• 120 mm x 120 mm size
• Suitable for walls and floors
• Compatible with underfloor heating systems
• Allows immediate tiling after installation

Typical applications:

• External wall corners in wetrooms and bathrooms
• Boxed pipework and service penetrations
• Shower enclosures and structural returns
• Sealing exposed junctions within tanking systems

Installation guidance:

• Ensure the substrate is sound, clean and free from contaminants
• Fill any gaps or irregularities before installation
• Prime surfaces where required and allow to dry
• Position the external corner over the junction before applying membrane or joint tape
• Press firmly into place and roll to ensure full adhesion
• Apply Hydromat membrane and joint tape, overlapping onto the corner in line with the EasyLap system
• Seal all edges and junctions with butyl sealant (order separately)
• Refer to installation instructions for full system guidance

Also available separately:

• Hydromat EasyLap membrane roll – 15 m x 550 mm (7.5 m²)
• Hydromat single-sided self-adhesive butyl joint tape
• Hydromat double-sided self-adhesive butyl internal corners
• 1 litre primer
• 310 ml butyl sealant

Technical details:

• Product type: Double-sided self-adhesive butyl external corner
• Size: 120 mm x 120 mm
• System compatibility: Hydromat EasyLap (15 m x 550 mm membrane, 7.5 m²)
• Application: External corners and exposed junctions
• Installation: Immediate bond, no curing time
• Tile finish: Ready to tile immediately
• Suitable for underfloor heating: Yes

Warranty:

• When installed correctly by a competent person and used for normal wetroom applications, the Hydromat system carries a life-of-tiling manufacturer guarantee (subject to grout maintenance)
• No guarantee is offered where installation or maintenance requirements are not followed

FAQs:

• What is a Hydromat external corner used for? It is used to seal external junctions such as wall returns and boxed areas within wetroom tanking systems.
• Is this required for installation? Yes, external corners are essential for sealing exposed edges and maintaining a continuous waterproof barrier.
• Can tiles be installed immediately? Yes, tiles can be fitted straight after installation.
• Is it compatible with the EasyLap system? Yes, it is designed specifically for use with the Hydromat EasyLap membrane and jointing system.
• Can it be used with underfloor heating? Yes, it is suitable for installations incorporating underfloor heating.
